Autel Robotics EVO II Dual 640T Enterprise Bundle V3

Exceptional Image Quality

With Sony's new 20 megapixel 1-inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video with greater dynamic range, stronger noise suppression, and higher frame rates. The f/2.8-f/11 adjustable aperture and 44000 maximum ISO gives photographers enhanced creative control.

Moonlight Algorithm 2.0

Equipped with Autel NEWEST Moonlight Algorithm 2.0 system, the V3 camera ISO can be up to 44000 for the night photography, also with 12-Bit DNG photos which is capable of recording up to 68.6 billion colors with 64 times, allowing the drone has greater flexibility in post-production.

Excel in Low Light

EVO II Pro V3 brings you Autel's Moonlight Algorithmn 2.0 with additional noise reduction processing. Paired with EVO II Pro V3's upgraded CMOS, succeed in operations with minimal lighting or in harsh lighting situations at night.

4K HDR Video

The EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color and detail of HDR. Previously hidden areas of dark shadow and sunlight are now full of clarity and details.

 Post-Production Flexibility with 12-bit DNG

 The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.

 6K Hyper-Lapse Photography

You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.

16x Zoom in for the Details: EVO II Pro V3 supports 3x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.

Accident Reconstruction:The EVO II Pro V3 is excellent for accident reconstruciton, andis compatible with Pix4d, Drone Deploy, and Skyebrowse.

 Skylink 2.0 Video Transmission

The EVO II PRO V3 is upgraded with Autel's all new skylink 2.0 Video Transmission technology.

15KM HD video Transmission   QHD Critical details with QHD video within 1km

2.4G/5.8G Less signal breakups and enhanced anti-inter-ference capabilities.

360° Obstacle Avoidance

EVO II Pro V3 is equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main
camera, ultrasonic wave, and IMU to build a three-dimensional map of the drone and its surroundings in real time.

Maximum Performance Endless Possibilities

40 Min Maximum Flight Time  20m/s Maximum Flight Speed

17m/s Maximum Wind Resistance   920g Maximum Lift Capability

Practical and Convenience Features

Deploy Rapidly : The EVO II Pro V3 takes 45 seconds from
launch to takeoff without fuss.

No Forced Updates : EVO II Pro V3 does not need to be on the latest
hardware or app version in order to take off unlike others.

Autel Smart Controller SE

EVO II Pro V3 is packed with Autel 2023 Smart Controller SE which comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission, which guarantees operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

Broadcast with Live Deck 2

EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.

Specs

• Aircraft

  Takeoff weight	1191 g
  Max takeoff weight	1270 g
  Wheelbase	397 mm

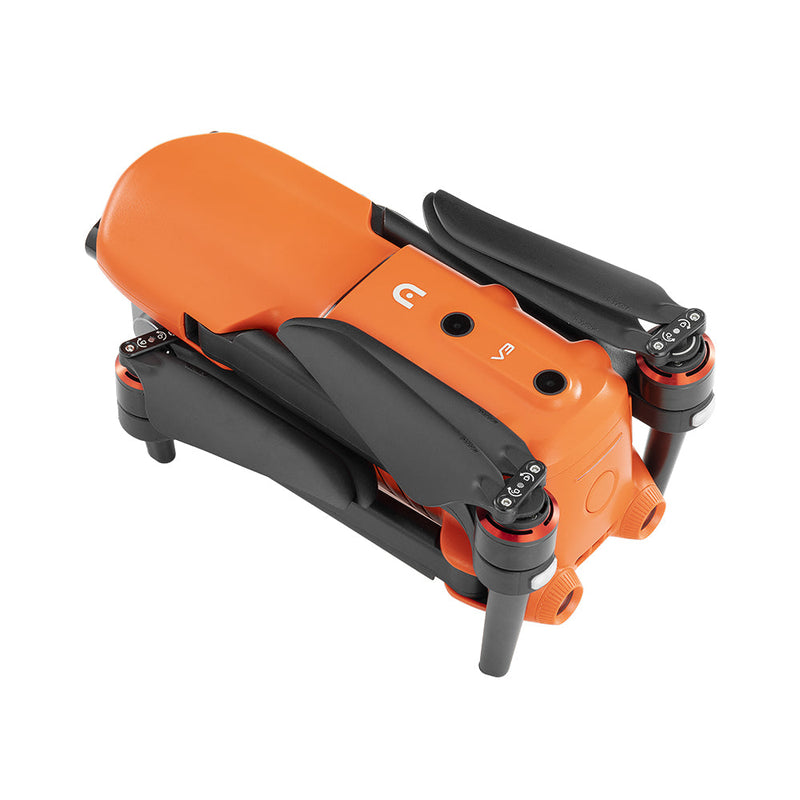

  Size(L*W*H)	230x130x108 mm (folded)  457x558x108 mm (unfolded)
  Maximum service ceiling above sea level	5000 m
  Maximum flight altitude	800 meters (Altitude limit in the App)
  Max ascent speed	8 m/s (Ludicrous)
  Max descent speed	4 m/s (Ludicrous)
  Max horizontal flight speed	20m/s (Ludicrous)
  Max flight distance (no wind)	25 km
  Max tilt angle	33° (Ludicrous)
  Max angular velocity	120°/s
  Max flight time (no wind)	39 min
  Max hovering time (no wind)	35 min
  Operating temperature range	-10℃ ~ 40℃
  Maximum resistance to wind	12 m/s (Take-off and landing)
  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power	900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm
  Hovering accuracy	Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)
  GNSS	GPS/Beidou/Glonass/Gallieo
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)

• Gimbal

  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°

• Remote controller and image transmission

  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：15km CE：8km
  Display screen	2340x1080 60fps
  Battery	1900mAh
  Operating time	~2 hours (Max. Brightness) ~3 hours (50% Brightness)
  Charging time	90 minutes
  Internal Storage	ROM 128GB + expandable storage via micro-SD card

• Sensing system

  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

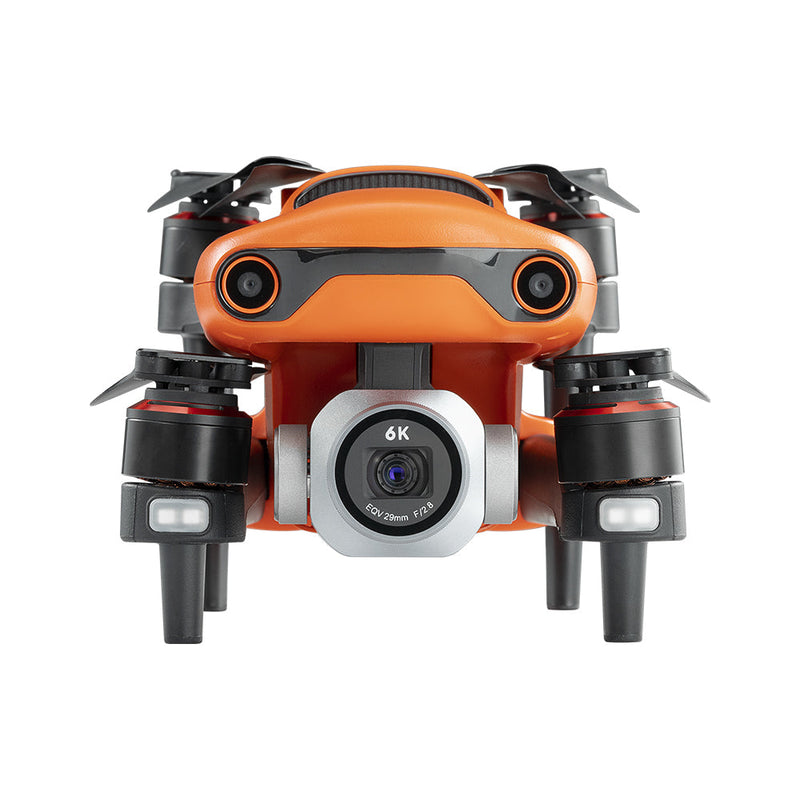

• Camera

  Sensor	1 inch CMOS; 20M pixels
  Lens	FOV: 82° Equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity
  ISO range	Video: 100-44000 Photo: 100-6400
  Shutter speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1-16x (up to 3x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
  Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
  Image Format	JPG (default) / DNG / JPG+DNG
  Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
  Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Max bitrate	120Mbps
  Supported file system	FAT32/exFAT

• Battery

  Capacity	7100 mAh
  Voltage	11.55 V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365 g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes

• Charger

  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W

• Multi-Charger

  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃

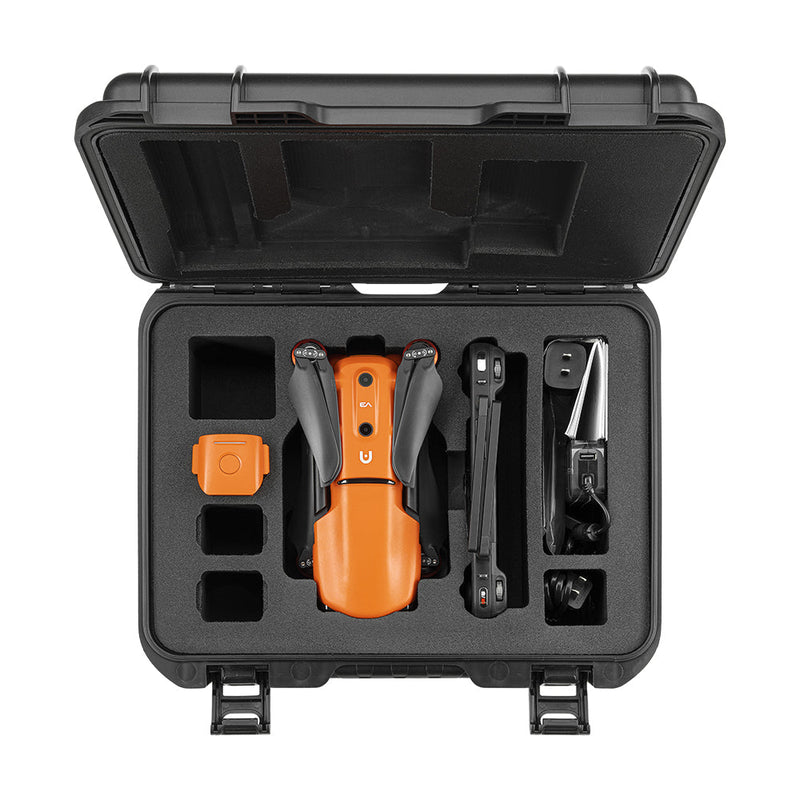

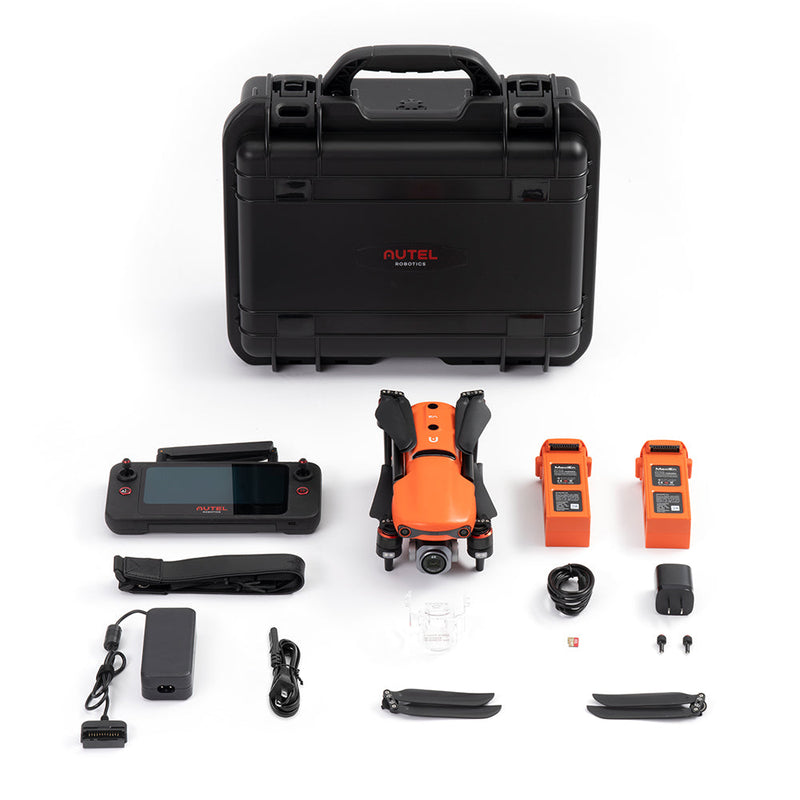

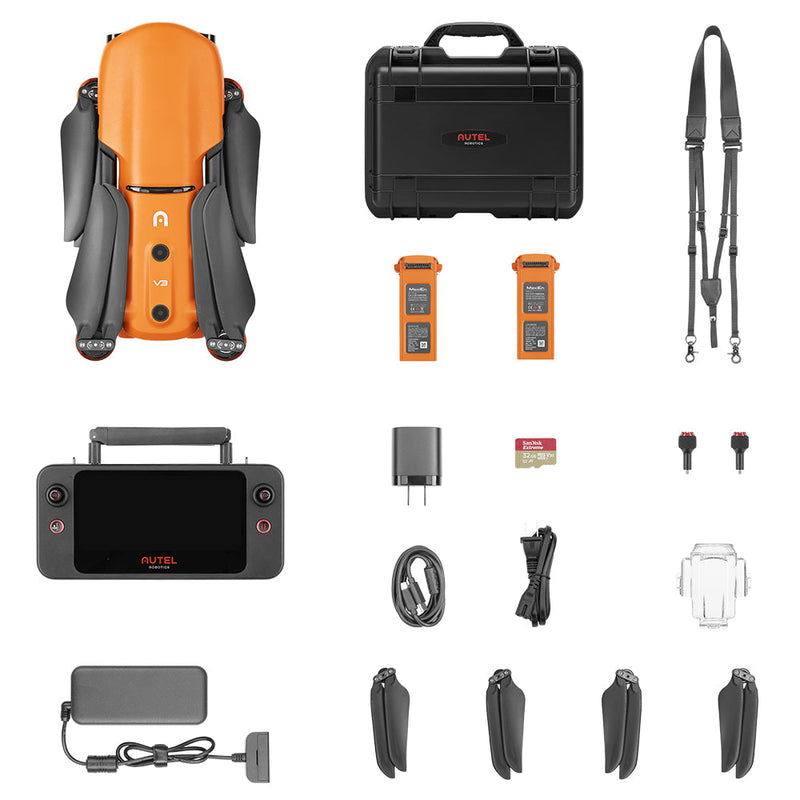

Whats in the box
