Autel Latest Released EVO II Pro Dual 640T RTK V3 Bundle,integrates an entirely new RTK module for 2023, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable dataacquisition in complex operation environments.
Autel Explorer for Mapping
Create Rectangular or Polygon Missions Non stop turning on corners Supports Double grid mapping for additional angles
Multi-NTRIP Profile Saving：For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
Photo Replication : For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.
Multi-Battery Missions : The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.
Dual Cameras:Accurate Temperature Measurement
The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an all new Sony .8" 50 megapixel RYYB sensor.
High-Resolution Thermal Imaging Sensor
Equipped with a 640x512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than the competition with the similar resolution and hardware.
Precise Temperature Measurement
The EVO II Dual 640T RTK V3 can accurately detect heat sources within a distance of 2-20 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.
10 Multi Temperature Measurement Modes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection
Picture in Picture Mode
The thermal drone can do dual situation observation with this picture in picture mode,it can measure the central temperature in the picture ,or measure the pointed spot temperature as you need,even the regional temperature(the max and min temp in the area),and also can set temperature alarm.
Powerful Infrared Thermal Analysis Tool-IRPC TOOL
This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.
Zoom in for the Details
16x Zoom in for the Details: EVO II Pro V3 supports 4x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.
Skylink 2.0 Video Transmission
The EVO II PRO V3 is upgraded with Autel's all new skylink 2.0 Video Transmission technology.
15KM HD video Transmission QHD Critical details with QHD video within 1km
2.4G/5.8G Less signal breakups and enhanced anti-inter-ference capabilities.
360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
Safe and Sturdy
Deploy Rapidly : The EVO II Pro RTK V3 takes 45 seconds from
launch to takeoff without fuss.
27mph Max Wind Resistance, 38 Min Maximum Flight Time
No Forced Updates : EVO II Pro RTK V3 does not need to be on the latest
hardware or app version in order to take off.
Autel Smart Controller V3
7.9-inch ,2000nit high brightness srceen is clearly visible even under direct sunlight. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
Broadcast with Live Deck 2
EVO II Pro RTK V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.
Widely Application
Specs
-
Autel EVO II Dual 640T RTK V3 Specs
-
Aircraft
| Weight (With propellers, battery and RTK module) |
1250g±0.5g（EVO II Dual 640T RTK V3）
|
Max Takeoff Weight
|
4.41 lbs+ (1999 g) |
| Size(L*W*H) |
Folded: 230*130*143mm; 9.1*5.1*5.6 inches
Unfolded: 457*558*143mm; 18*22*5.6 inches |
| Wheelbase |
397 mm |
| Maximum Service Ceiling Altitude |
7000 m |
| Max ascent speed |
8 m/s (Ludicrous) |
| Max descent speed |
4 m/s (Ludicrous) |
| Max horizontal flight speed |
20m/s (Ludicrous) |
| Max flight distance (no wind) |
21 km |
| Max angular velocity |
120°/s |
| Max tilt angle |
33° (Ludicrous) |
| Max flight time |
36 min |
| Max hovering time (no wind) |
32 min |
| Operating temperature range |
14°F to 104°F (-10℃ ~ 40℃) |
| Maximum resistance to wind |
27mph, 12 m/s (Take-off and landing) |
| Operating frequency |
902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz
|
| Transmission power(E.I.R.P) |
900M
FCC/ ISED：≤31dBm
2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm
5.8G
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBm |
| Hovering accuracy |
When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m
Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GNSS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GNSS works normally) |
| Image position compensation |
The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. |
| Internal storage |
8GB |
| SD storage |
max. support 256GB (UHS-3 or Class 10) |
-
GNSS
| Single frequency high sensitivity GNSS |
GPS+BeiDou+Galileo（Asia）
GPS+GLONASS+Galileo（Other areas） |
| Multi-frequency multi-system high-precision RTK GNSS |
Frequency points used：
GPS：L1/L2；
GLONASS：L1/L2；
BeiDou：B1/B2；
Galileo：E1/E5
First positioning time:<50 s
Positioning accuracy:
vertical 1.5 cm + 1 ppm (RMS);
Horizontal 1 cm + 1 ppm (RMS)
1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves |
|
|
-
Gimbal
| Gimbal |
3-axis stabilization |
| Mechanical range |
Tilt: -135° to +45°;
Pan: -100° to +100° |
| Controllable rotation range |
Tilt: -90° to +30°;
Pan: -90° to +90° |
| Max control speed (Tilt) |
300°/s |
| Angular Vibration Range |
±0.005° |
-
Remote controller and image transmission
| Operating frequency |
902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz
|
| Transmission power(E.I.R.P) |
FCC：≤33dBm
CE：≤20dBm@2.4G，≤14dBm@5.8G
SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G |
| Max Transmission Distance (unobstructed, free of interference) |
FCC：9.3 miles (15 km)
CE：5 miles (8km) |
| Display screen |
2048x1536 60fps |
| Battery |
5800mAh |
| Operating time |
~3 hours (Max. Brightness)
~4.5 hours (50% Brightness) |
| Charging time |
120 minutes |
| Internal Storage |
ROM 128GB |
-
Sensing system
| Sensing system type |
Omnidirectional sensing system |
| Forward |
Accurate measurement range: 0.5-18 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80° |
| Backward |
Accurate measurement range: 0.5-16 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80° |
| Upward |
Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: Horizontal: 65°, Vertical: 50° |
| Downward |
Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 100°, vertical: 80° |
| Left and right |
Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 65°, vertical: 50° |
| Operating Environment |
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.) |
-
EVO II Dual 640T RTK thermal camera
| Sensor |
Uncooled VOx Microbolometer |
| Lens |
FOV H33°V26°
Focal length 13mm |
| Zoom |
1-16x |
| Pixel size |
12μm |
| Wavelength range |
8 - 14μm |
| Temperature range |
High gain mode: -20° to +150°
Low gain mode: 0° to +550° |
| Temperature measurement accuracy |
±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃ |
Accurate temperature
measurement distance |
2-20 meters |
| Video resolution |
640x512@25fps |
| Video format |
MOV / MP4 (Support H.264/H.265) |
| Camera resolution |
Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720 |
| Photo mode |
Single shot
Burst shooting: 3/5 frames, 3 is the default
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s |
| Photo format |
JPG (with irg file) |
-
EVO II Dual 640T RTK V3 visual camera
| Sensor |
1/1.28"(0.8") CMOS; 50M effective pixels |
| Lens |
FOV: 85°
35 mm format equivalent focal length: 23 mm
Aperture: f/1.9
Focus range: 0.5 m to infinity (with auto focus) |
| ISO range |
Video: 100-64000
Photo: 100-6400 |
| Shutter speed |
Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates |
| Zoom |
1-16x (up to 4x lossless zoom) |
| Photo mode |
Single shot/Burst shooting/AEB/Time Lapse/HDR imaging |
| Maximum photo size |
8192*6144（4:3）
4096*3072（4:3）
3840x2160（16:9） |
| Image Format |
JPG (default) / DNG / JPG+DNG |
| Video format |
MOV / MP4 |
| Video resolution |
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24 |
| Max bitrate |
80Mbps |
| Supported file system |
FAT32/exFAT |
-
Battery
| Capacity |
7100 mAh |
| Voltage |
11.55 V |
| Battery type |
LiPo 3S |
| Energy |
82 Wh |
| Weight |
365 g |
| Charging temperature range |
5℃ to 45℃ |
| Storage temperature and humidity |
-10~30℃，65±20%RH |
| Recommended storage temperature |
22-28℃ |
| Max charging power |
93W |
| Charging time |
90 minutes |
-
Charger
| Input |
100-240 V, 50/60 Hz, 1.5A |
| Output |
13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A |
| Voltage |
13.2±0.1V |
| Rated power |
66W |
-
Multi-Charger
| Voltage |
13.2 V |
| Charging temperature range |
5℃ to 45℃ |

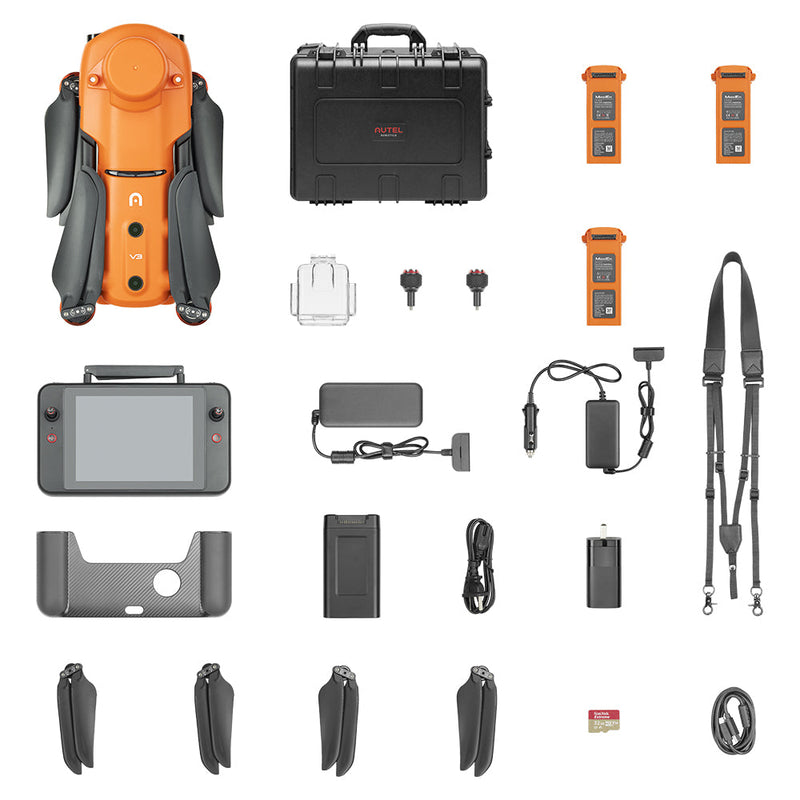

Whats in the box
What's Included?
- EVO II Dual 640T RTK V3 Bundle -
- Aircraft *1( (Battery, propeller, gimbal cover)
- Remote Controller*1
- Spare Propellers*2 pair
- Spare Battery*2
- Battery Charger+Power Cable*1
- Car Charger*1
- Multi-Charger*1
- RC Charger *1
- RC Charging Cable*1
- Spare Control Stick (pair)*1
- RC Protective Case*1
- RC Lanyard*1
- Extended Port Cover*1
- Protector Case*1
- Quick Guide
