Autel Robotics EVO II Dual 640T Enterprise Bundle V3

Great Enterprise ACCS

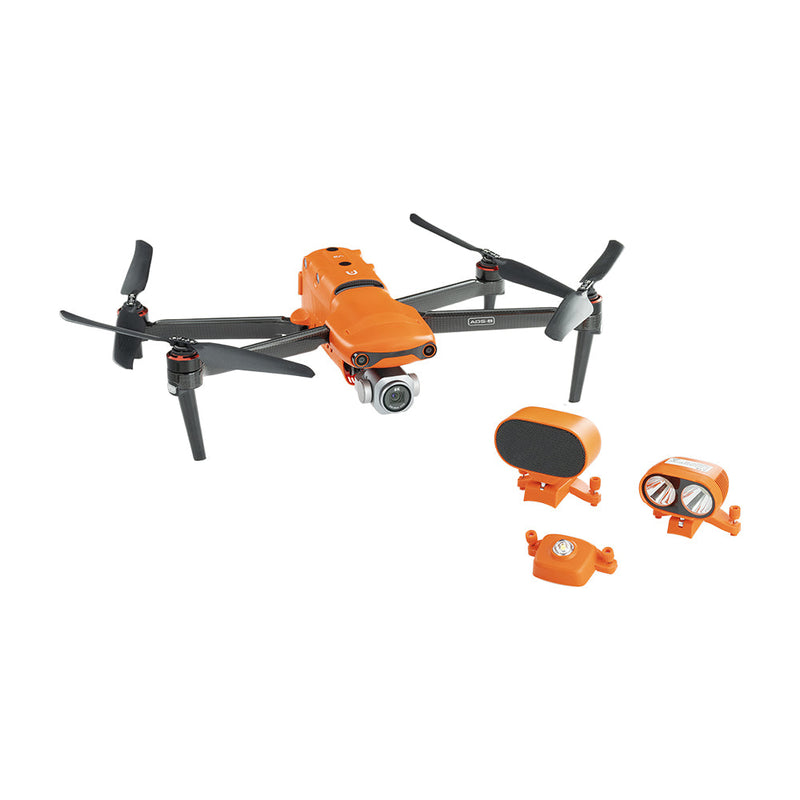

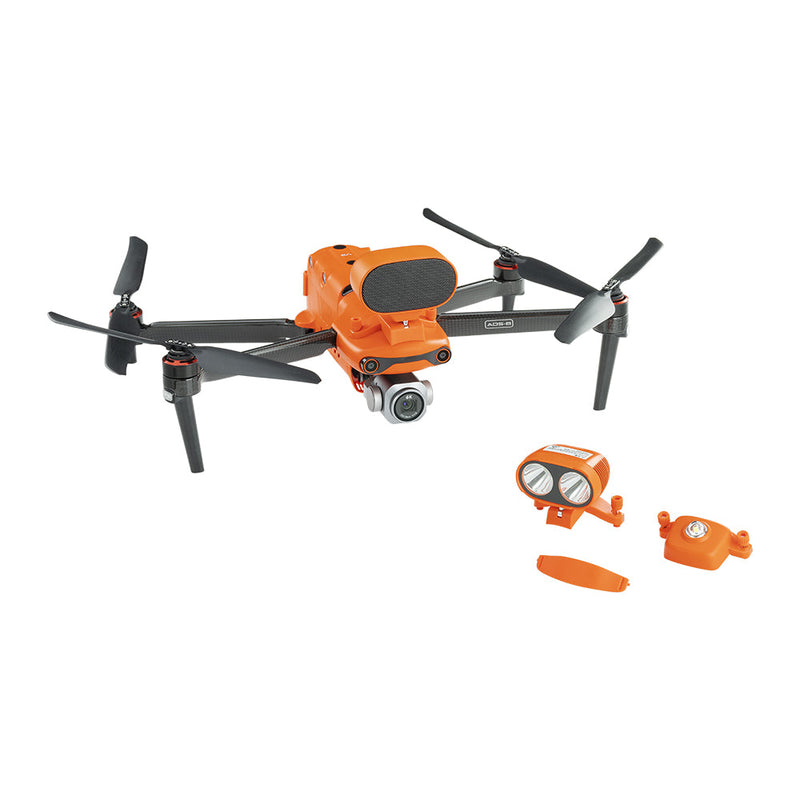

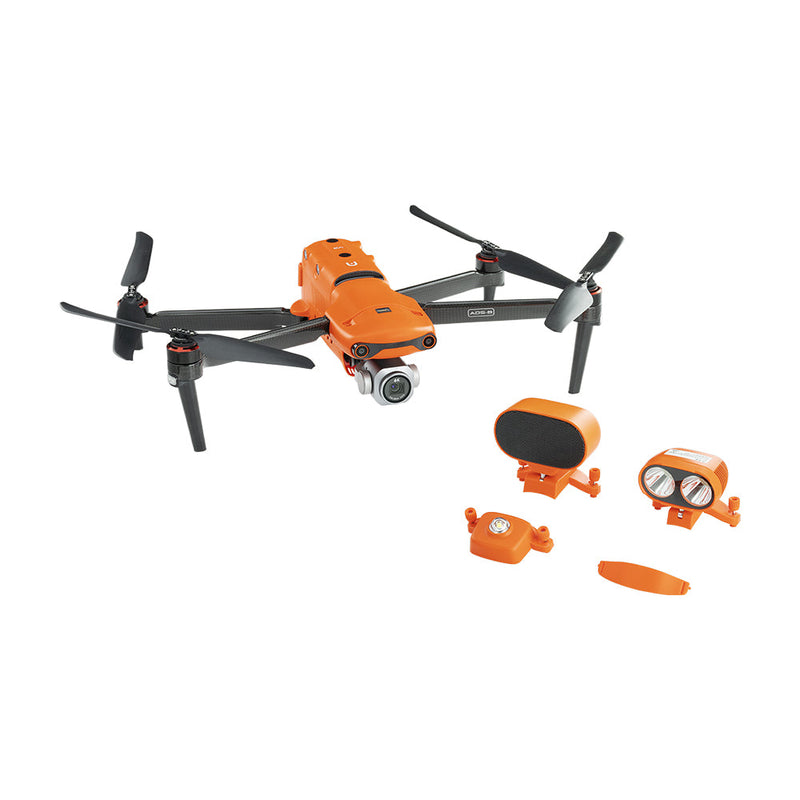

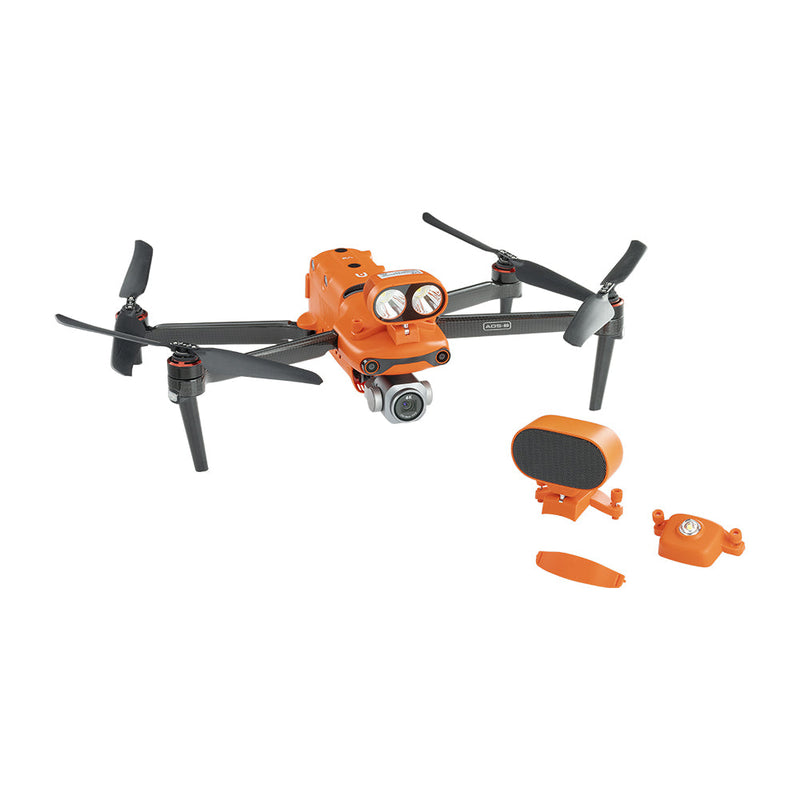

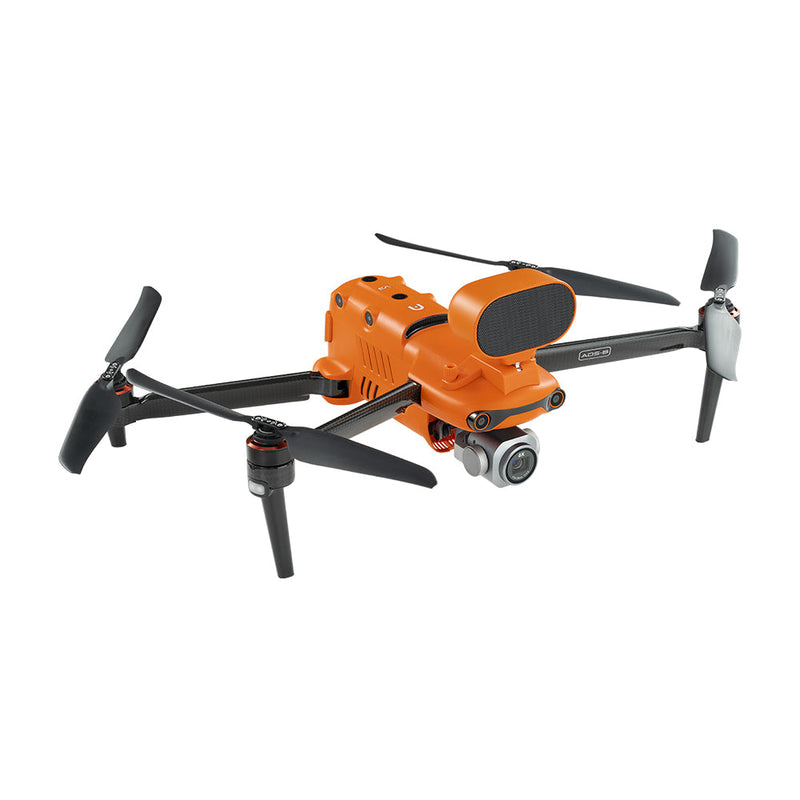

Enterprise V3 will come with 3 enterprise level accs: Strobe,Spotlight,and Loudspeaker.With Strobe Module,it will indicate the location of the drone at night to avoid accident.With Spotlight Module,it beams a powerful and long distance light when searching at night.With Loudspeaker Module,Enables effective on-site communication through long-distance live broadcasts and prerecorded audio loops.

All New 6K 1" CMOS Camera

EVO II Pro Enterprise V3 with Sony's new 20 megapixel 1-inch CMOS image sensor, supporting up to 6K video resolution with greater dynamic range and higher frame rates.The lens's adjustable aperture range of f/2.8 to f/11 and a maximum ISO of 44000 enables the photographer to enhance their image control and creative freedom.

Zoom in for the Details

16x Zoom in for the Details: EVO II Pro V3 supports 3x lossless zoom and 16 times digital zoom. Fly at safer distances while still getting high-fidelity imagery.This really helps a lot in Power Inspection,it can zip between transmission towers to quick spot structural damage,saving time and labor costs.

Skylink 2.0 Video Transmission

The EVO II PRO V3 is upgraded with Autel's all new skylink 2.0 Video Transmission technology.

15KM HD video Transmission   QHD Critical details with QHD video within 1km

2.4G/5.8G Less signal breakups and enhanced anti-inter-ference capabilities.

360° Obstacle Avoidance

EVO II Pro V3 is equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main camera,ultrasonic wave and IMU to build a three dimensional map of the drone and its surroundings in real time.

Advanced Airframe Built

Deploy Rapidly : The EVO II Pro Enterprise V3 takes 45 seconds from launch to take off without fuss.

Wind Resistance 27mph, 42 Min Maximum Flight Time

Autel Smart Controller V3

7.9-inch ,2000nit high brightness srceen is clearly visible even under direct sunlight. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

Broadcast with Live Deck 2

EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2(not included).Transmit real-time HD video to a wide variety of devices, giving cross-departmental teams enhanced situational awareness and communication, leading to quicker and better decision making.

Specs

Autel EVO II Pro Enterprise V3 Specs

• Aircraft

  Takeoff Weight(Without Accessories)	EVO II Pro Enterprise：2.45 lbs (1110 g)
  Max Takeoff Weight	1999 g
  Diagonal Length	16.8 inches (427 mm)
  Size(L*W*H)	Folded: 9.6*5.1*4.4 inches; 245*130*111mm Unfolded: 19.9*24.4*4.4 inches; 506*620*111mm
  Max Service Ceiling Altitude	4.3 miles (7000 m) MSL
  Max Ascent Speed	18 mph (8 m/s) (Ludicrous)
  Max Descent Speed	9 mph (4 m/s) (Ludicrous)
  Max Level Flight Speed	45 mph (20 m/s) (Ludicrous)
  Max angular velocity	120°/s
  Max tilt angle	33° (Ludicrous)
  Max Flight Time (no wind)	42 min（without accessories）
  Max Hovering Time (no wind)	38 min（with strobe） 29 min（with spotlight） 34 min（with loudspeaker） 36 min（with RTK module）
  Operating Temperature Range	14℉ to 104℉ (-10℃ to 40℃)
  Max Wind Speed Resistance	27mph, 12 m/s (Take-off and landing)
  Operating Frequency	2.400 GHz - 2.4835 GHz； 5.725GHz - 5.850 GHz
  Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)

• Gimbal

  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°

• Remote controller and image transmission

  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power (E.I.R.P)	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：9.3 miles (15 km) CE：5 miles (8 km)
  Display screen	2048x1536 60fps
  Battery	5800mAh
  Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging time	90 minutes
  Internal Storage	ROM 128GB

• Sensing system

  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

• EVO II Pro Enterprise V3 visual camera

  Sensor	1 inch CMOS; 20M pixels
  Lens	FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity
  ISO range	Video: 100-44000 Photos: 100-6400
  Shutter speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1-16x (up to 3x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
  Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
  Image Format	JPG (default) / 12bits DNG / JPG+12bits DNG
  Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P120/P60/P50/P48/P30/P25/P24
  Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Max bitrate	120Mbps
  Supported file system	FAT32/exFAT

•

• Accessories

  Strobe	Dimensions：39*72*34 mm Weight：19.5 g Connections：Floating Connectors Power：Avg. 1.6W Controllable Range：5000 m Light intensity：Min 50cd；Max 486cd；Avg. 290cd
  Loudspeaker	Dimensions：46*80*77 mm Weight：98.5 g Connections：Floating Connectors Power：Max 18W Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m； Max Bitrate：36kbps Adjustable Angle Range：0°~45°
  Spotlight	Dimensions：48.5*72*63 mm Weight：77 g Connections：Floating Connectors Power：Max 35W Controllable Range：30 m Adjustable Angle Range：0°~90° Illuminance：FOV14°, Max：11lux @ 30m Straight

• Battery

  Capacity	7100 mAh
  Voltage	11.55 V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365 g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes

• Charger

  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W

• Multi-Charger

  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃

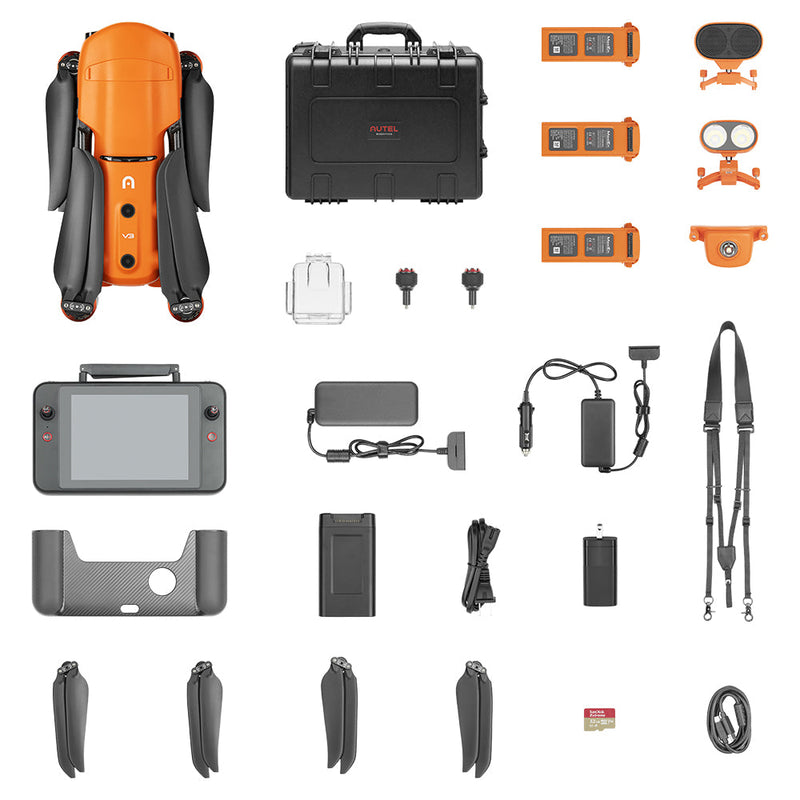

Whats in the box
