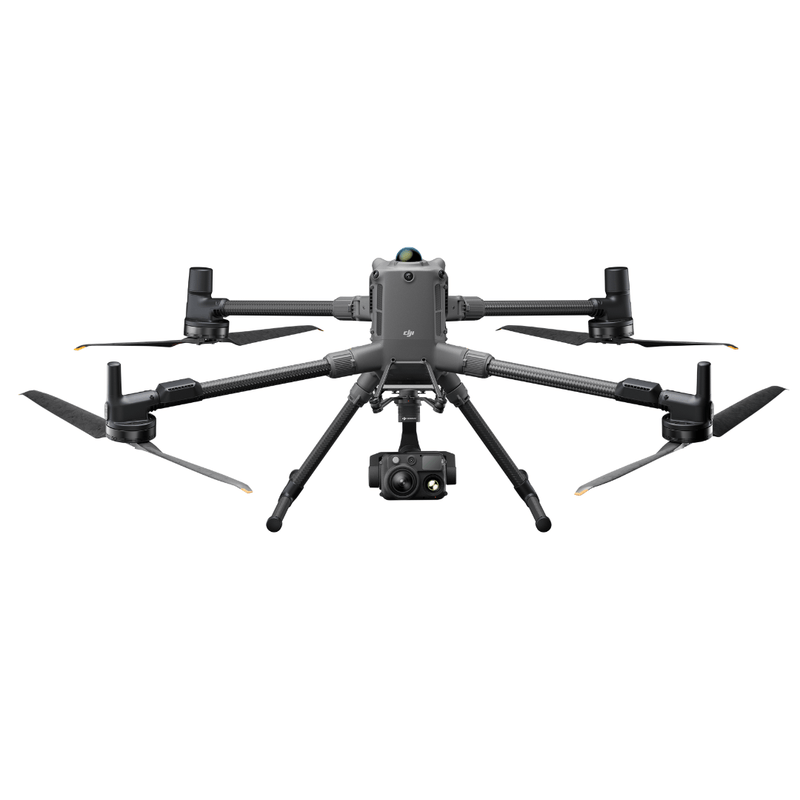

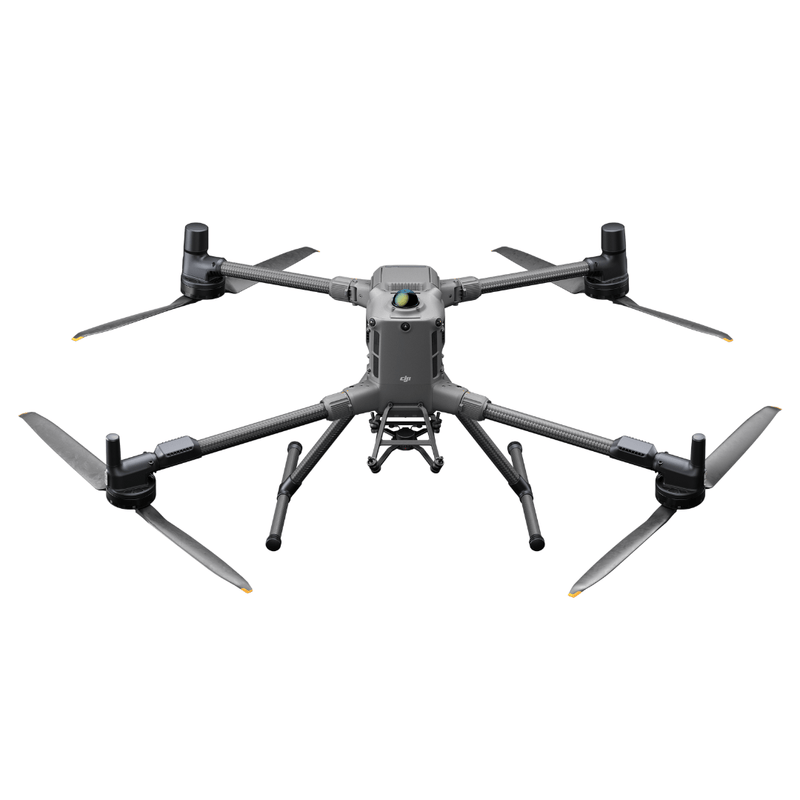

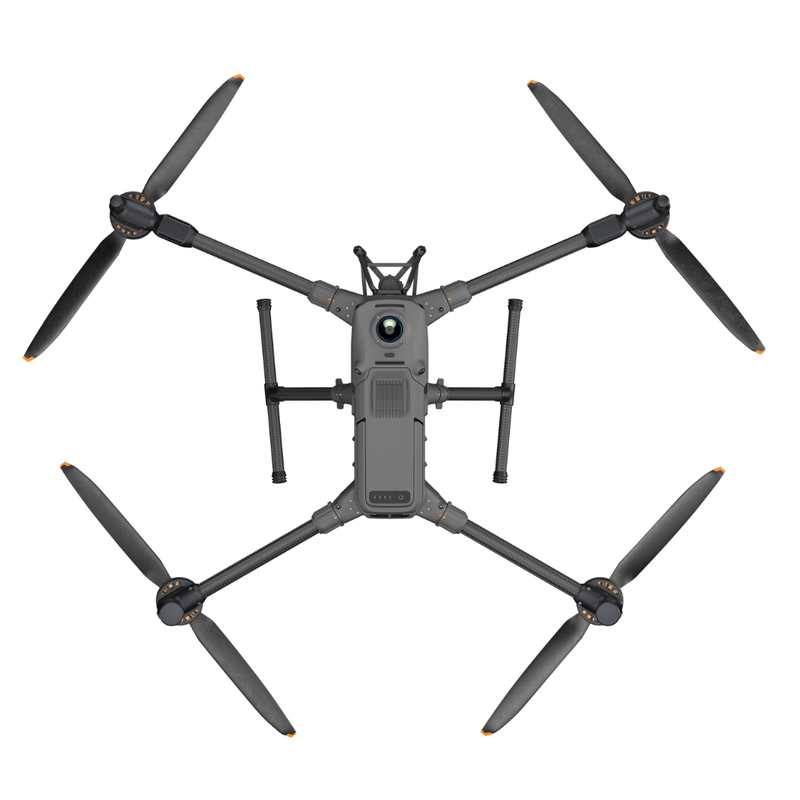

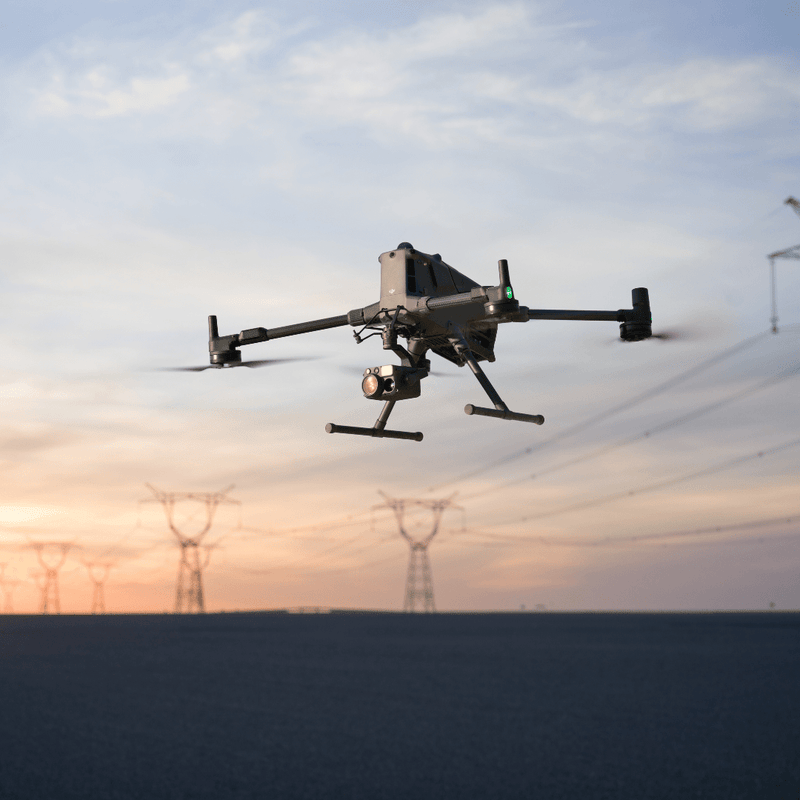

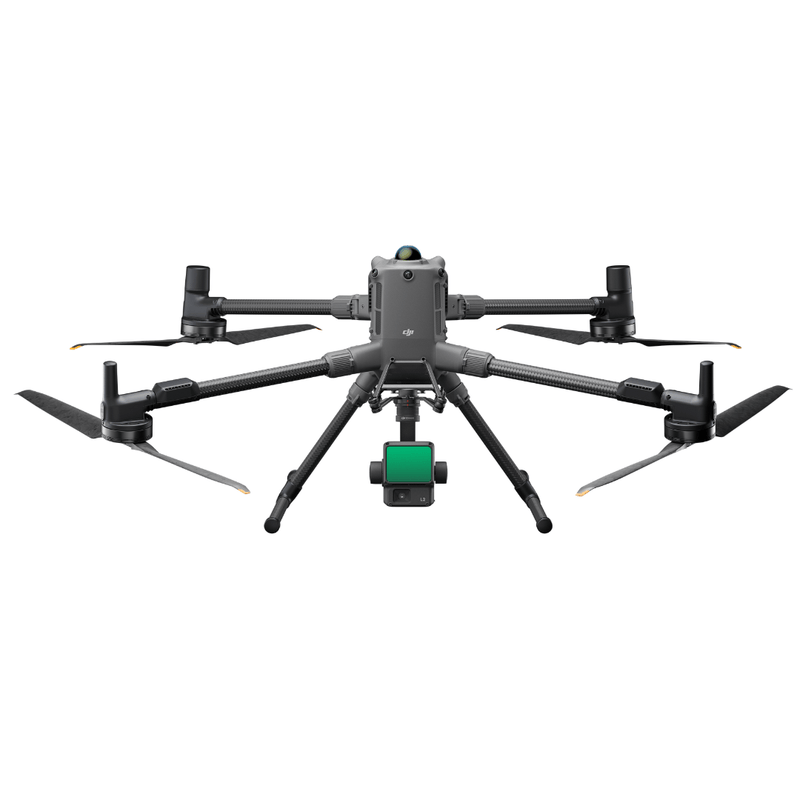

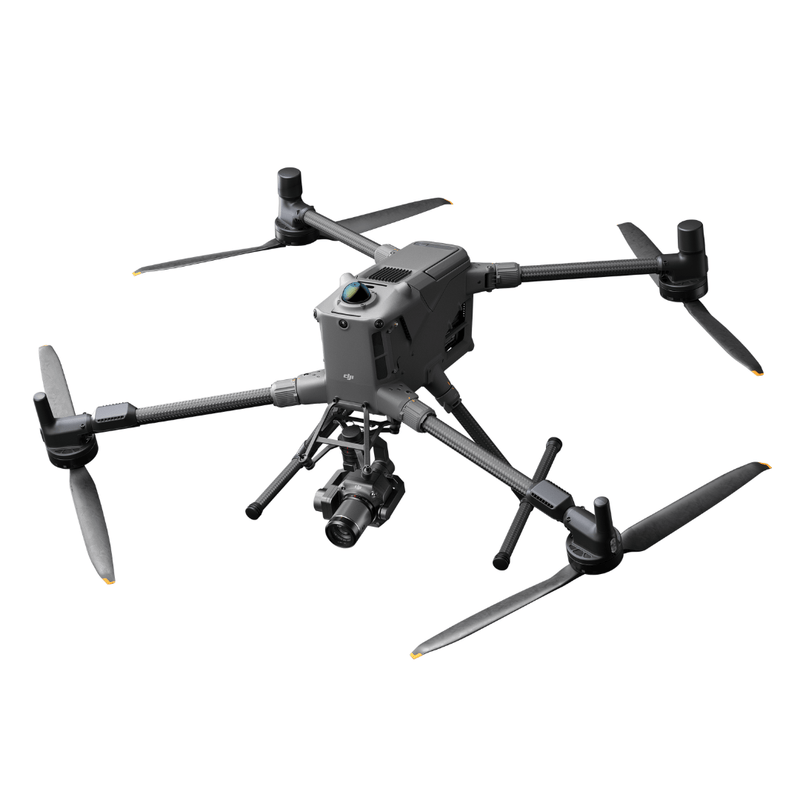

DJI Matrice 400 Enterprise Drone

The DJI Matrice 400 - Long Endurance Drone Platform With Power Line Level Obstacle Sensing

DJI Matrice 400, the enterprise flagship drone platform, boasts an impressive 59-minute flight time, a payload capacity of up to 6 kg, and integrated rotating LiDAR and mmWave radar for power-line-level obstacle sensing. It also supports the O4 Enterprise Enhanced Video Transmission System and Airborne Relay Video Transmission, ensuring safer handling and easier operations. Combining Smart Detection with visible and thermal imaging, AR projection, ship-based takeoff/landing, and advanced automation, Matrice 400 excels in emergency response, power inspections, mapping, and AEC.

Features:

• Extended Flight Time, High Speed Performance
• UP to 6kg Payload Capacity
• Safe and Reliable Flight
• Enhanced Intelligence and Efficiency
• Automated Operations
• Comprehensive Accessory Upgrades

Extended Flight Time, High Speed Performance

Matrice 400's flight capabilities are outstanding, offering up to 59 minutes of forward flight time even with a payload, and up to 53 minutes of hovering duration. These capabilities make it a reliable tool for long-duration and continuous operations such as search and rescue, firefighting, and large-scale mapping. It can also avoid large obstacles like buildings and mountains at flight speeds of up to 25 m/s.

Multi-Payload, Multi-Scene

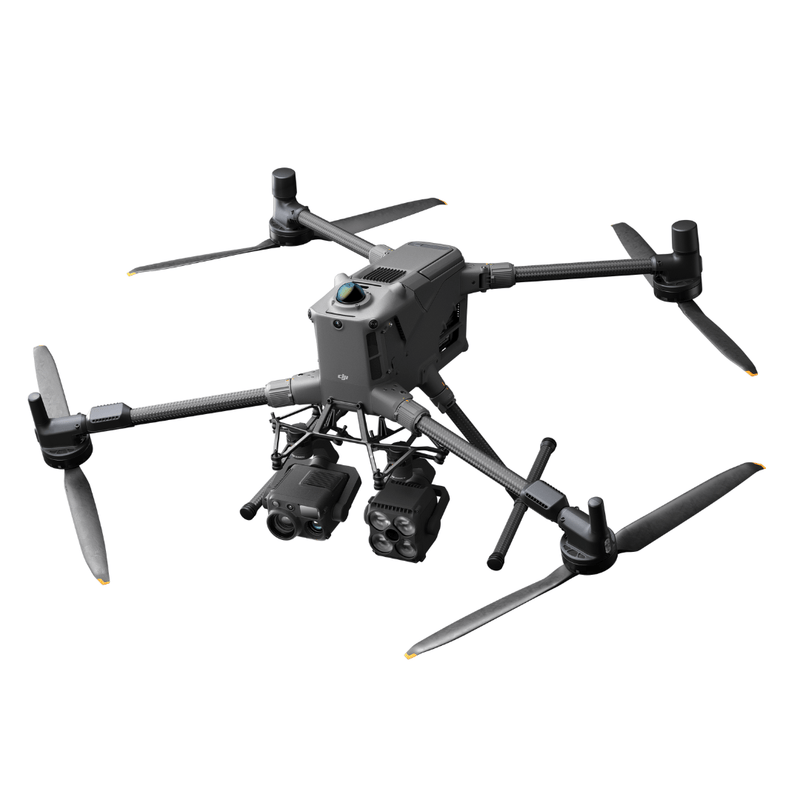

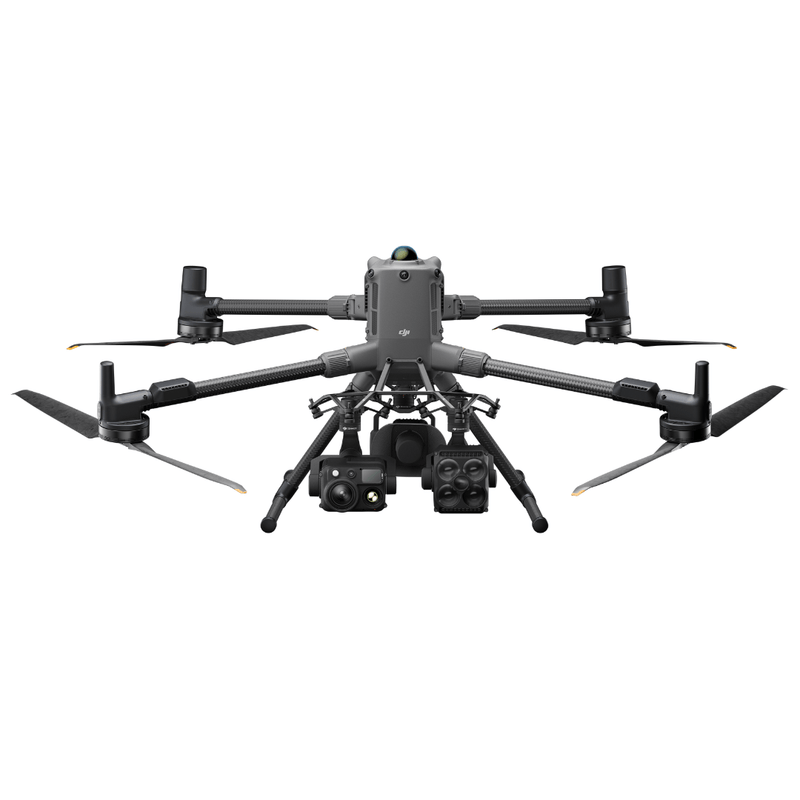

Matrice 400’s strong payload capacity allows it to easily meet the demands of a wide range of applications. With a maximum payload capacity of 6 kg, Matrice 400 supports seamless switching between a single downward gimbal and a dual downward gimbal. It also features a third gimbal connector on the underside for additional flexibility. The aircraft is equipped with 4 external E-Port V2 ports, enabling simultaneous mounting of up to 7 payloads.

Depending on the task, Matrice 400 can be equipped with the Zenmuse H30 Series, L2, P1, S1 Spotlight, V1 Speaker, Manifold 3, or third-party payloads, thereby expanding its capabilities and unlocking the full potential of the DJI ecosystem.

Safe and Reliable Flight

• Built for Challenging Conditions:  Matrice 400 has a protection rating of IP55, allowing it to operate reliably in challenging conditions including heavy dust or rain. It also maintains stable performance across temperatures from -20° to 50° C (-4° to 122° F), delivering consistent results in both hot and cold conditions.

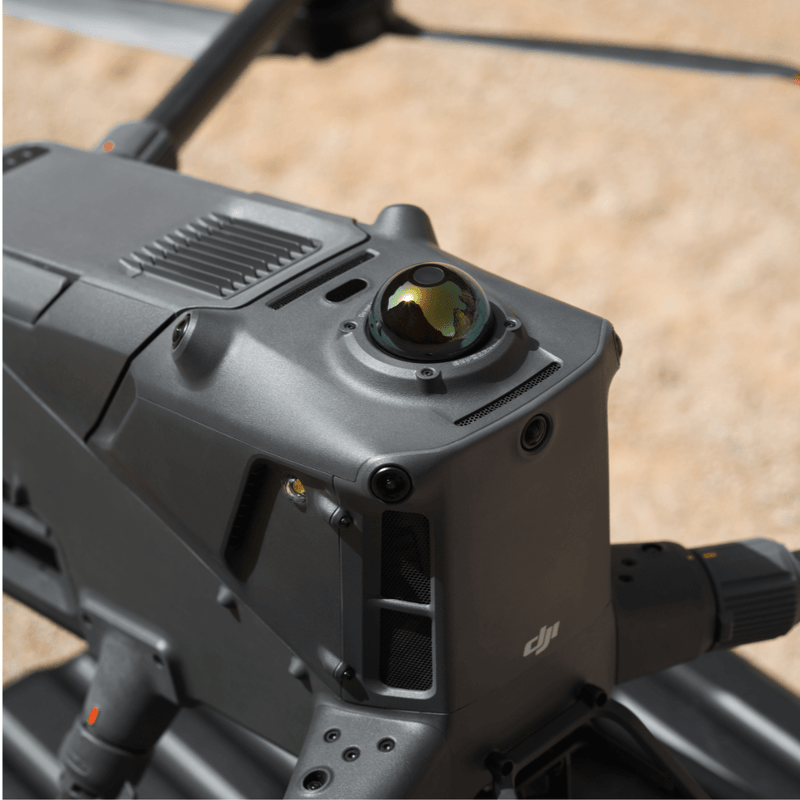

• Power-Line-Level Obstacle Sensing:  The Matrice 400's advanced obstacle sensing system integrates rotating LiDAR, high-precision mmWave radar, and full-color low-light fisheye vision sensors, pushing detection capabilities to unprecedented levels. The system detects even small obstacles like high-voltage power lines across mountainous terrain — even in darkness. It can penetrate rain and fog to sense its surroundings, providing enhanced safety in challenging weather conditions.

Robust Video Transmission

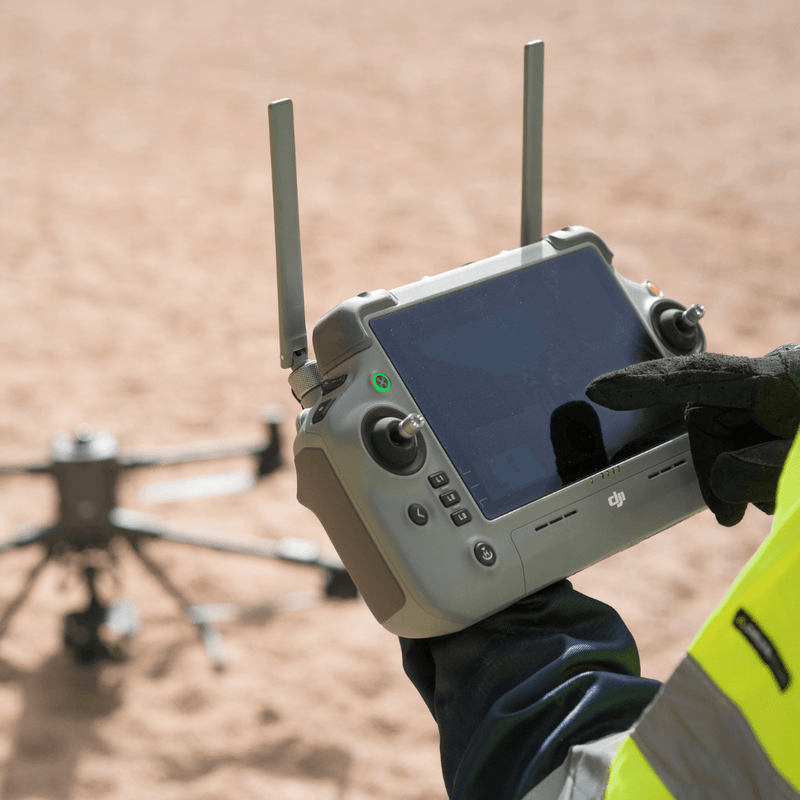

• O4 Enterprise Enhanced Video Transmission System:  Thanks to the ten-antenna system on the aircraft and the high-gain phased array antenna system on the remote controller, the O4 Enterprise Enhanced Video Transmission System can achieve image transmission up to 40 km. Matrice 400 also supports the sub2G frequency band, and when equipped with two DJI Cellular Dongle 2, it can automatically switch to the better available carrier network, providing a more stable signal even in urban interference environments or remote regions.
• Airborne Relay Video Transmission:  Matrice 400 has a built-in video transmission relay module. With this setup, one Matrice 400 can serve as a relay drone, flying high to provide relay signals for another Matrice 400 operating at a greater distance. This capability significantly extends the transmission range, making it ideal for search and rescue tasks as well as inspections in mountainous areas.

Aircraft Fusion Positioning

The omnidirectional sensing performance brought by rotating LiDAR, high-precision mmWave radar, and full-color low-light fisheye vision sensors provides Matrice 400 with strong positioning capabilities. It can fly stably close to glass-facade buildings or wind turbine blades and safely return from building edges, mountain bases, or bridge sides even when the return point has not been updated.

Full-Color Vision Assist

The four full-color low-light fisheye vision sensors on the aircraft provide Full-Color Vision Assist to ensure safer flight.

Enhanced Intelligence and Efficiency

• Smart Detection:  With Zenmuse H30 Series' visible and thermal imaging, Matrice 400 can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports switching to other models, enabling the expansion of application scenarios. Additionally, it supports high-res grid photos and features powerful tracking capabilities.
• Real-Time Terrain Follow:  Matrice 400 supports Real-Time Terrain Follow flight in any horizontal direction. This feature can be enabled during both manual flight and automated flight routes, ensuring stable relative height to the ground. During large-scale search and rescue operations, the size of ground subjects can be kept consistent on the remote controller screen, reducing the need for frequent zoom adjustments and improving efficiency. During mapping missions, a consistent ground sampling distance (GSD) can be maintained to obtain high-precision mapping data.

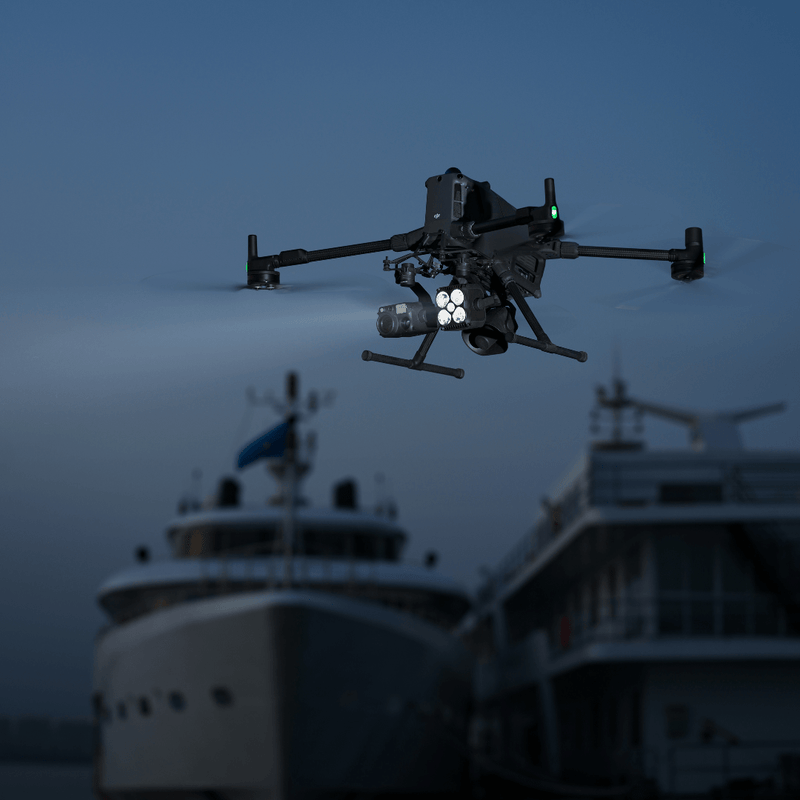

• Takeoff and Landing on Ships: To address the needs of offshore operations such as maritime patrol and wind turbine inspection, Matrice 400 is equipped with the capability to take off from and land on ships, supporting takeoff from stationary vessels and landing on moving vessels. By detecting landing point patterns on the deck, it can achieve safe and precise landings.

Intelligent Flight Modes

• Cruise:  Activate cruise control mode to pilot the drone in a specific direction without constantly pressing the control sticks, making long-distance flights or linear inspections easier.
• FlyTo:  In emergencies or disasters, the drone can automatically adjust its flight path and speed based on the surrounding environment, allowing it to reach a designated location without manual adjustments.
• Smart Track:  Allows for precise subject positioning and automatic zoom adjustments, allowing you to switch between subjects easily. It can automatically reacquire a subject even if obscured briefly.
• POI:  Enables continuous observation and 3D modeling of buildings while orbiting a designated area, greatly enhancing the efficiency of fixed-point observation and modeling tasks.

Easier Automated Operations

• Power Line Follow With Zenmuse L2:  When equipped with the L2 LiDAR system, Matrice 400 can perform automated power transmission and distribution line following flights. It uses the rotating LiDAR to detect obstacles in real time and automatically bypasses crossing lines.
• Slope Route & Geometric Route:  Matrice 400 supports the planning and execution of slope and geometric routes via DJI Pilot 2 or DJI FlightHub 2. Whether conducting detailed aerial surveys of building facades, slopes, or other inclined surfaces, or collecting mapping data of individual buildings or structures, Matrice 400 can quickly plan slope or geometric routes to efficiently acquire high-precision data.

DJI Matrice 400 - Engineered for Excellence, Designed for Versatility

Applications

Public Safety:  Drones elevate public safety agencies by enhancing response times, reducing operational costs, and improving decision-making while ensuring the safety of personnel in critical operations.

• Law Enforcement - mission situational awareness, first response
• Firefighting - urban fires, wildfires
• Emergency Response - disaster prevention and response
• Search and Rescue
• Private Security
• Wildlife Protection

Inspection:  Drone inspections provide accurate data readings of critical structures or components. Through visual and thermal imagery, drones provide comprehensive information for targeted maintenance efforts and improved operational efficiency.

• Electricity - power line inspection, substation inspection
• Oil and Gas
• Renewables - photovoltaic power plant inspection, wind turbine inspection

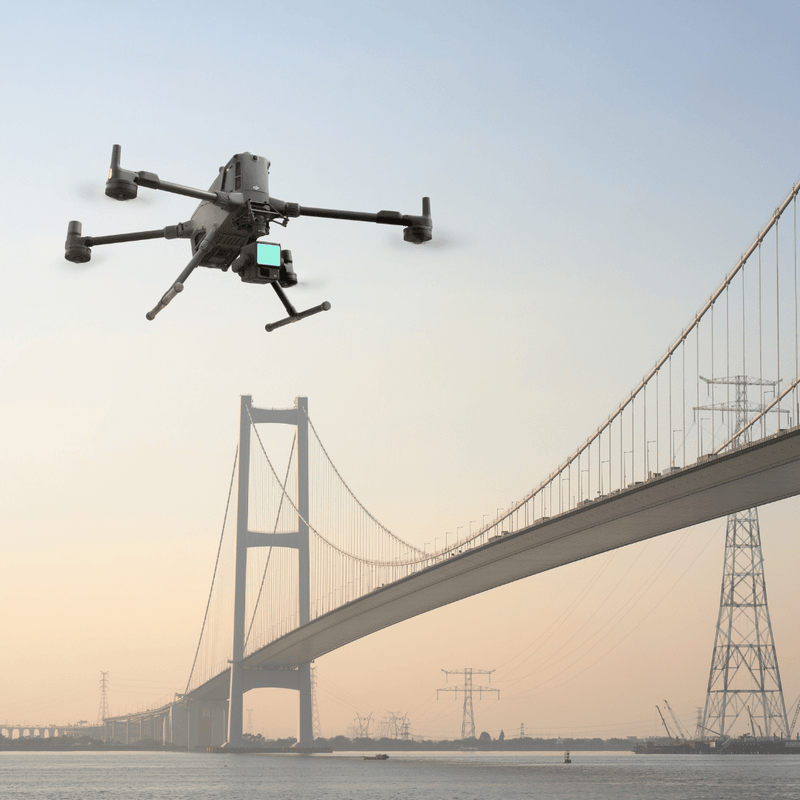

• Infrastructure - bridge inspection, roof inspection

Geospatial:  Geospatial drone solutions provide highly accurate digital deliverables for managers, surveyors and engineers, improving operations throughout the project lifecycle. Drones enable timely decision-making, cost savings, enhanced personnel safety, and optimal efficiency through aerial data collection

• Surveying and Mapping - Land Survey, Cadastral Survey, Urban Planning
• Construction - Progress Management, Earthwork, BIM, Heritage Preservation
• Mining - Mining Survey, Facade High Wall, Asset Inspection, Site Safety
• Precision Agriculture and Forestry

Additionally - Water Conservation, Maritime, Roads and Bridges

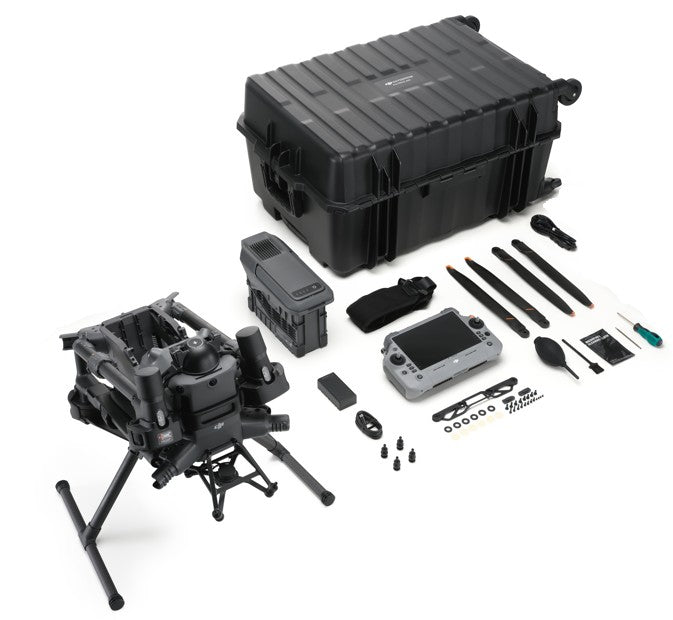

In the Box

Please Note:  Aircraft batteries and battery station not included

1 - Matrice 400 Aircraft (with propeller holder)
1 - Remote Controller — DJI RC Plus 2 (with sub-2 G SDR Module)
1 - WB37 Battery (for RC)
1 - Carrying Case
2 - Landing Gear
2 - Propeller Pair
6 - Propeller Washers and Screws
1 - Remote Controller Strap & Bracket
1 - USB-C ↔ USB-C Cable
1 - Power Cable
4 - Gimbal Damper
1 - Screws & Tools Set
1 - Cleaning Tools Set
1 - Rubber Port Covers & Screws Set

Compatibility

Gimbal Cameras:

• Zenmuse H30
• Zenmuse H30T
• Zenmuse L2
• Zenmuse P1

Accessories:

• Zenmuse S1 (drone spotlight)
• Zenmuse V1 (drone speaker)
• Manifold 3
• DJI RC Plus 2 sub2G SDR Module
• DJI Cellular Dongle 2

RTK Station:

• D-RTK 3 Multifunctional Station
• D-RTK 2 Mobile Station

Ecosystem Accessories:

• DJI X-Port
• DJI E-Port V2 Development Kit
• DJI E-Port V2 Coaxial Cable Kit
• DJI SKYPORT V3 Adapter Set
• DJI SKYPORT V3 Coaxial Cable Kit
