Freefly Astro Max

Name: Freefly Astro Max
Brand: Freefly
SKU: 950-00158
Price: 20000.0 USD
Availability: InStock

by Freefly

SKU 950-00158

$20,000.00 - $20,000.00

$20,000.00

$20,000.00 - $20,000.00

$20,000.00

Why Shop With Us?

Free Shipping On All Orders
Lowest Price Online
No Sales Tax (Exl WY)
Speak With an Expert Today: (858) 326-9543

Freefly Systems · USA-Made Industrial Drone Platform

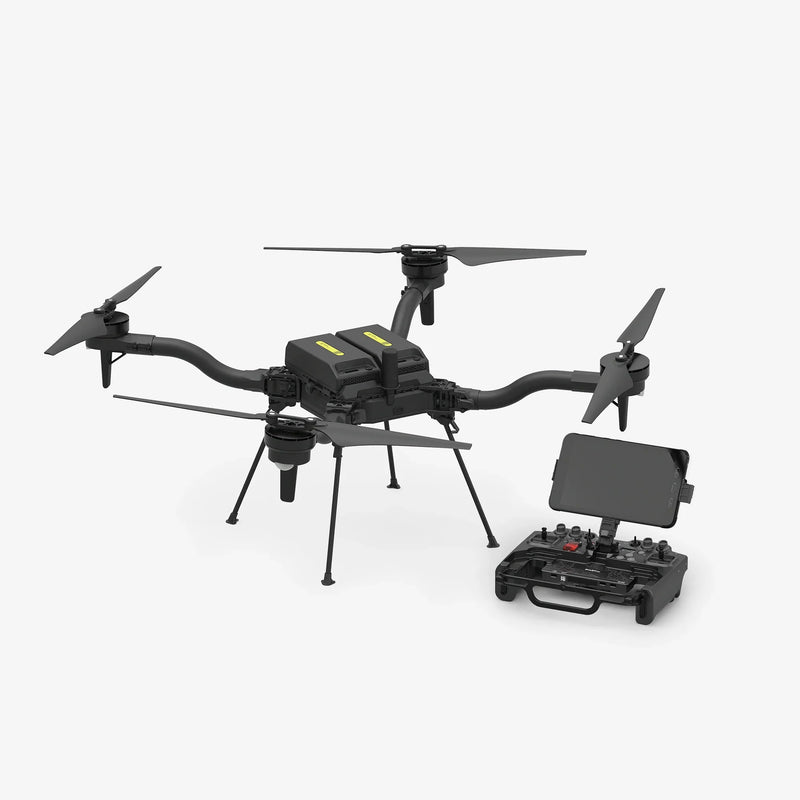

Freefly Astro Max

The open-platform industrial drone built for professional sensors. 43-minute endurance, 3 kg payload capacity, RTK-ready precision — all in a compact, foldable USA-made airframe.

43 Min

Flight Time

3 kg

Max Payload

IP43

Rated

RTK

Ready

LTE

Built-In

USA

Made

Astro Max AirframePilot Pro ControllerSmart Dovetail MountRTK ReadyIP43 RatedMade in USALTE ConnectivityBVLOS ApprovedOpen Payload Platform

Open Platform. Cinema-Grade Precision. USA-Built.

For over a decade, Freefly aircraft have carried cinema cameras for Hollywood productions in high-stakes environments around the world. The Astro Max brings that same precision engineering to commercial drone operations. An open payload architecture, Smart Dovetail quick-release mount, L1/L2 RTK-ready positioning, Auterion Enterprise PX4 flight software, and built-in LTE connectivity make the Astro Max the most capable compact industrial drone on the market — ready to fly LiDAR, RGB, thermal, multispectral, and gas imaging sensors from day one.

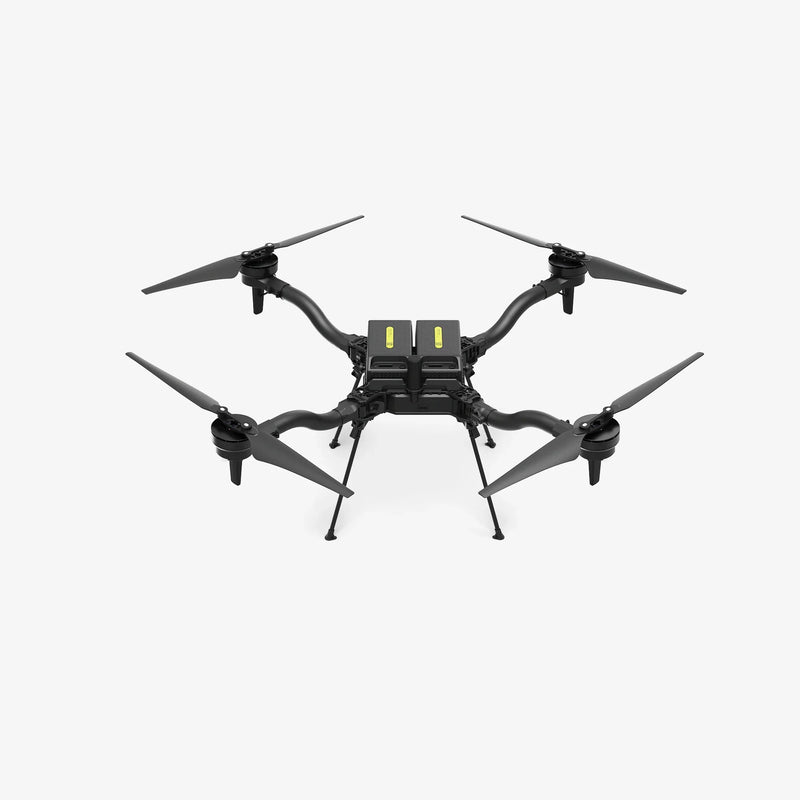

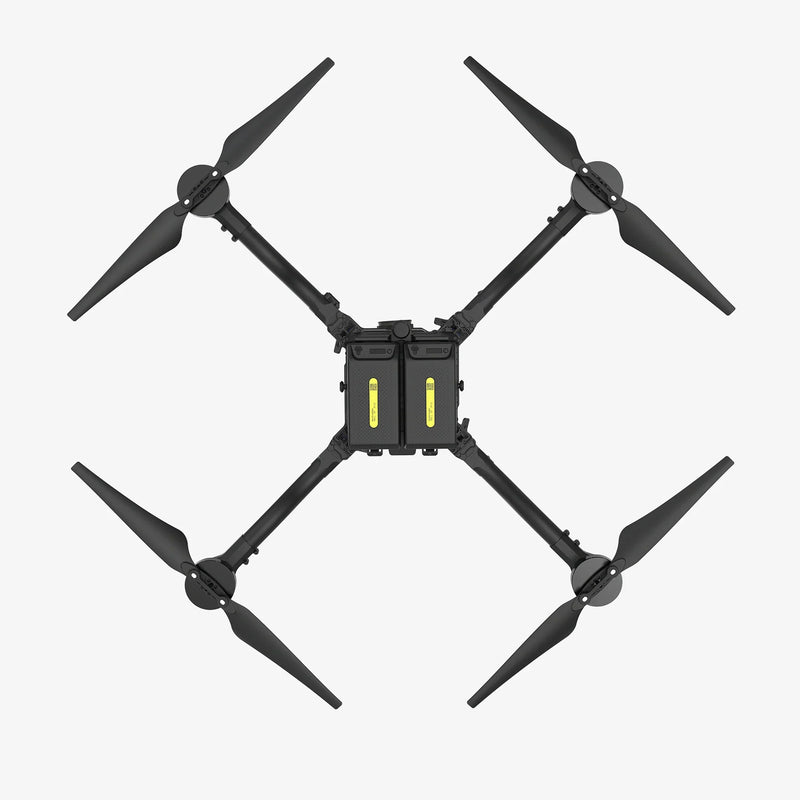

Astro Max Airframe

4-Motor High-Efficiency Platform

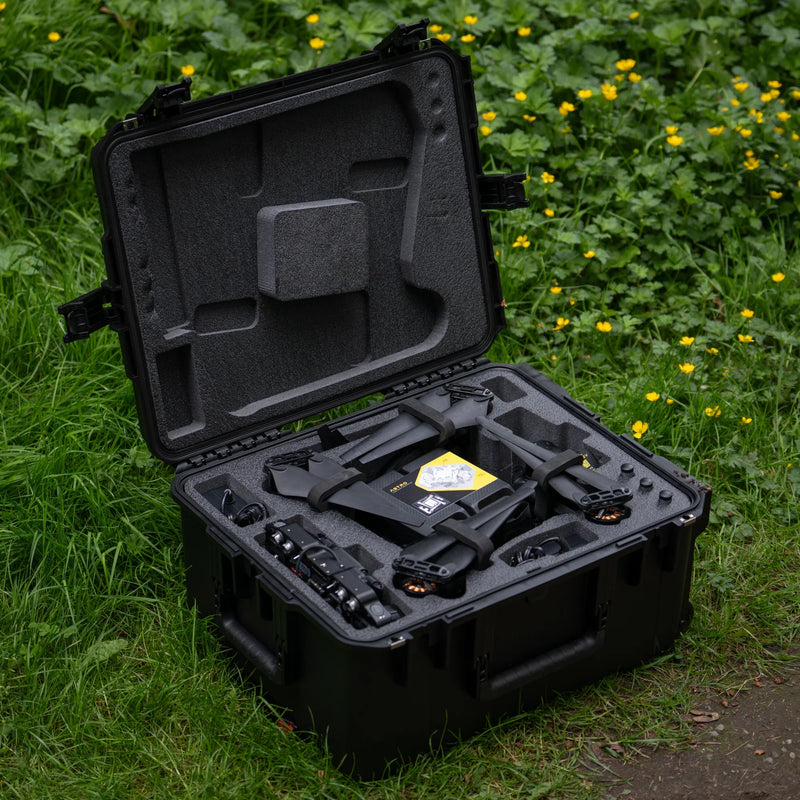

Powered by 4× Freefly 7010 motors (350W continuous / 600W peak) and 22" folding carbon fiber props. Booms fold to half flight diameter for rapid pack-out. Ships in a rugged MIL-STD 810G SKB rolling travel case — airline checkable.

✓ 930 mm unfolded / 508 mm folded

✓ IP43 ingress protection

✓ -20°C to 50°C operating range

✓ FAA Remote ID pre-installed

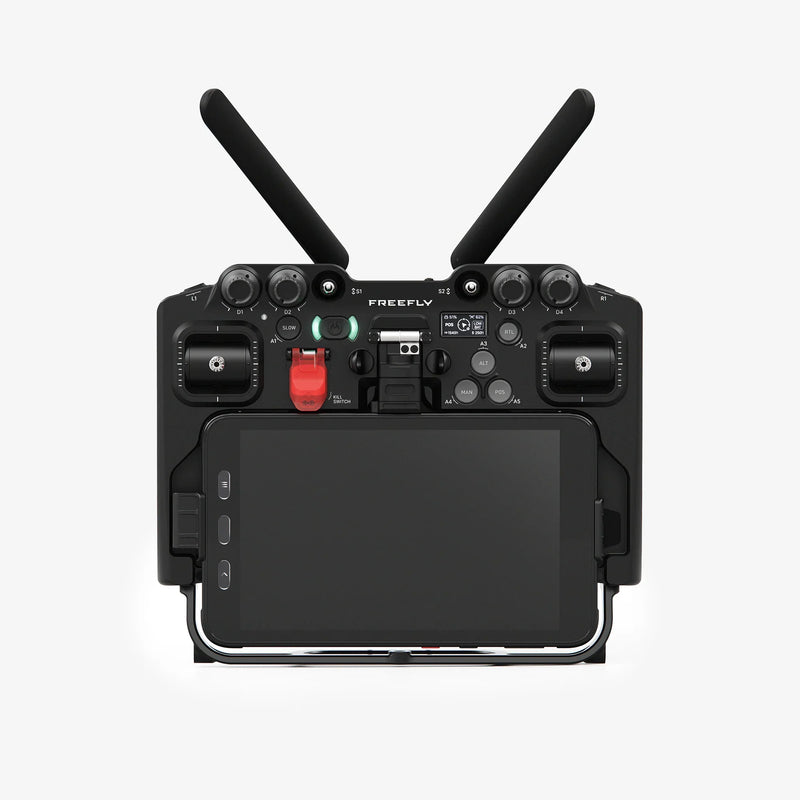

Freefly Pilot Pro Controller

Professional Ground Control System

Ships with Herelink 1.1 2.4 GHz radio and a pre-configured Samsung Galaxy Tab Active5. High-resolution rockers for precise gimbal control, emergency kill-switch, internal battery with hot-swap external power support.

✓ Herelink 1.1 radio (2.4 GHz)

✓ Samsung Galaxy Tab Active5 included

✓ Emergency kill-switch

✓ V-Mount external battery compatible

Open Payload Ecosystem

Smart Dovetail Quick-Release Mount

Tool-free payload swaps in seconds — no recalibration. Pre-installed Astro Isolator provides vibration isolation for sensitive sensors. Compatible with LR1, Flux LiDAR series, Sentera, Wiris Pro, Ventus OGI, Hovermap, and more.

✓ Vibration-isolated gimbal quick release

✓ Vibration-isolated cheese plate

✓ Toad in the Hole hard mount

✓ Open interface specs for custom builds

Astro Max Platform Capabilities

43-Min Endurance

Up to 43 minutes with no payload, 31 minutes with the LR1 camera, and ~20 minutes at full 3 kg payload. Dual Freefly SL8-Air smart batteries (6S, 21.6V, 157Wh each) with redundant BMS and OLED status display.

High-Efficiency Propulsion

4× Freefly 7010 motors delivering 350W continuous and 600W peak power. 22" folding carbon fiber reinforced nylon propellers (high-efficiency 2270 series) are purpose-designed for maximum endurance under heavy sensor loads.

Auterion Enterprise PX4

Freefly’s custom Skynode flight controller runs Auterion Enterprise PX4 — a commercial-grade, mission-proven autopilot with fully autonomous waypoint missions, Return to Land, and online fleet management via Auterion Suite.

L1/L2 RTK-Ready GNSS

Full L1/L2 dual-frequency GPS, GLONASS, BeiDou, and Galileo GNSS for centimeter-level positioning accuracy. Works with the optional Freefly RTK Ground Station (user-supplied ground station computer) for GCP-free survey workflows.

LTE + Wireless Connectivity

Built-in LTE (North America), WiFi, BLE, and USB-C provide real-time telemetry, live fleet monitoring, and connectivity beyond radio range. Cortex-A53 onboard computer enables edge processing and connectivity without a ground PC.

BVLOS & Remote ID Ready

Ships with Standard Remote ID pre-installed and configured for FAA compliance. Approved for BVLOS operations (FCC DA 25-1086). NDAA/DIU Blue version available separately for defense and government applications.

Key Use Cases

📸 Photogrammetry & RGB Mapping

Mount the Freefly LR1 (61MP Sony RGB) or Sentera 65R for high-resolution orthomosaic mapping and 3D modeling. Pair with the optional RTK Ground Station for centimeter-level, GCP-free accuracy on survey-grade deliverables across construction, land management, and civil engineering.

🌊 LiDAR Point Cloud Survey

Natively compatible with the full Freefly Flux LiDAR family — Flux L1, O1, and H1 — plus the Emesent Hovermap ST-X for dense, high-accuracy 3D point clouds. Ideal for corridor mapping, volume calculations, vegetation penetration, and AEC as-built documentation.

🌾 Multispectral & Precision Agriculture

Deploy the Sentera 6X Multispectral or 6X Thermal payload for NDVI crop health analysis, irrigation efficiency mapping, and early plant stress detection. Compatible with industry-standard agriculture data pipelines and GIS workflows.

⚡ Infrastructure Inspection

Inspect transmission lines, bridges, cell towers, and substations with the LR1 payload or Wiris Pro thermal sensor. Fly precise autonomous inspection routes with Auterion Mission Control for repeatable, documentable data collection on critical infrastructure assets.

🔥 Thermal & Gas Detection

Add the LR1 Thermal Upgrade or Freefly Wiris Pro for industrial thermal inspections, search and rescue, and fire monitoring. The Ventus OGI payload enables optical gas imaging for methane, propane, and VOC detection at oil & gas facilities and pipelines.

🗺️ BVLOS & Autonomous Missions

FAA-approved for BVLOS operations (FCC DA 25-1086). Built-in LTE provides real-time connectivity beyond radio range. Auterion Enterprise PX4 handles fully automated waypoint missions, fleet telemetry, and Return to Land — enabling unattended and extended-range workflows.

Full Technical Specifications

Category	Specification
Max Flight Time (No Payload)	43 Minutes
Flight Time with LR1 Payload	31 Minutes
Flight Time at Max Payload (3 kg)	~20 Minutes
Maximum Payload	3,000 g (3 kg)
Aircraft Weight (No Batteries / Payload)	3,523 g
Max Gross Takeoff Weight	8,700 g (altitude dependent)
Motors	4× Freefly 7010 — 350W continuous / 600W peak
Propellers	22 × 7.0" folding — Carbon Fiber Reinforced Nylon (2270 series)
Battery	2× Freefly SL8-Air — 6S, 21.6V, 157Wh, 1,035 g each (sold separately)
Charger	Freefly SL8 Fast Charger — 200W, ~90 min charge time (sold separately)
GNSS	L1/L2 GPS + GLONASS + BeiDou + Galileo
Flight Controller	Freefly Skynode — Auterion Enterprise PX4
Radio (Pilot Pro)	Herelink 1.1 — 2.4 GHz
Connectivity	LTE (North America), WiFi, BLE, USB-C
Ingress Protection	IP43
Operating Temperature	-20°C to 50°C
Unfolded Diameter (w/o props)	930 mm
Unfolded Diameter (with props)	1,407 mm
Folded Diameter	508 mm
Unfolded Height	359 mm
Payload Mounts	Smart Dovetail, Vibration Isolator, Cheese Plate, Toad in the Hole
Remote ID / Compliance	FAA Standard Remote ID pre-installed · BVLOS approved (FCC DA 25-1086)

What's in the Box

🚁

Astro Max Aircraft

🎮

Pilot Pro Controller

📱

Samsung Tab Active5

🧳

SKB Travel Case

🔧

Hex Drivers & Tools

🛡️

Proptectors (×4)

🔧

Spare Parts Kit

🏷️

Padded Neck Strap

⚠️ SL8-Air batteries and SL8 Fast Charger are sold separately. Freefly recommends 4 batteries and 2 chargers for uninterrupted field operations.

🏆

Authorized Freefly Dealer

Official US reseller

🚚

Free US Shipping

On all orders, ships fast

🛠️

Expert Support

Pre-sale advice from drone pros

🔒

Secure Checkout

Safe & encrypted payment

Frequently Asked Questions

Does the Astro Max come with batteries?

No — SL8-Air batteries and the SL8 Fast Charger are sold separately. Freefly recommends 4 SL8-Air batteries (157Wh, 6S each) and 2 SL8 Fast Chargers for continuous field operations. Each battery takes approximately 90 minutes to charge from empty.

Is this Astro Max NDAA compliant?

The standard Astro Max is not NDAA/DIU Blue compliant because it ships with a Herelink 1.1 radio link, which is not NDAA-approved. A separate NDAA/Blue UAS version (with Doodle Labs 2.4 GHz radio) is available for government, defense, and public safety programs where NDAA compliance is required.

What sensors and payloads work with the Astro Max?

The Astro Max supports the Freefly LR1 (61MP Sony RGB), LR1 Thermal Upgrade, Freefly Flux L1/O1/H1 LiDAR, Sentera 65R, Sentera 6X Multispectral/Thermal, Freefly Wiris Pro, Ventus OGI gas imaging, and Emesent Hovermap ST-X. The Smart Dovetail interface specs are open for custom payload integrations.

Can the Astro Max fly autonomous missions?

Yes. Auterion Enterprise PX4 on the Freefly Skynode flight controller supports fully automated waypoint missions, Return to Land, altitude hold, and position hold. Mission planning is handled via Auterion Mission Control, and fleet telemetry is available through Auterion Suite. The optional RTK Ground Station adds centimeter-level precision for survey-grade results.
