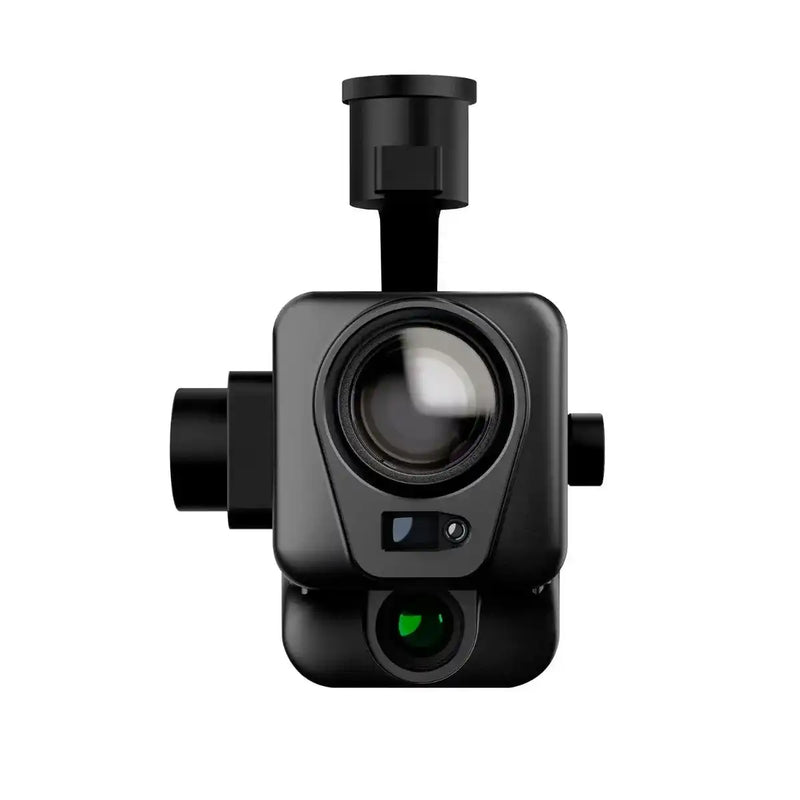

Deepthink S3 Tri-Sensor with Thermal Imaging UAV Camera (Compatible with DJI M300/M350 RTK)

The Deepthink S3 Tri-Sensor Night Vision Thermal Imaging Camera is a state-of-the-art AI night vision UAV camera designed for ultra-low light scenarios, especially nearly 0.0001 lux. Tailor-made for the DJI M300 and M350 RTK drones, the S3 is a hybrid payload integrating thermal imaging, a laser rangefinder, and a zoom camera. Powered by the proprietary AI-ISP algorithm, the S3 provides a second-to-none true-color solution ideal for urban and forest firefighting, rescue services, oil and gas operations, and aerial surveying.

The S3 features a low wind resistance design with a high-density aluminum alloy shell for superior heat dissipation, ensuring reliable performance in extreme operating environments. The night vision zoom camera boasts 30X optical zoom and 160X integrated zoom with a 4MP 1/1.8" Super Starlight CMOS sensor, delivering full-color HD imaging at 0.0001 lux. The laser rangefinder measures distances from 5 to 1500 meters with a wavelength of 905nm and ±1m accuracy, providing real-time positioning altitude. The thermal imaging camera uses an uncooled Vanadium Oxide (VOx) sensor with a DFOV of 45.76°, video resolution of 640x512, and a temperature range of -20°C to 150°C and 0°C to 550°C.

Key Features

• Low wind resistance design with high-density aluminum alloy shell for heat dissipation
• Night vision zoom camera: 30X optical zoom, 160X integrated zoom, 4MP, 1/1.8" Super Starlight CMOS, 0.0001 Lux Full Color HD Imaging
• Laser rangefinder: 5-1500 meters range, 905nm wavelength, ±1m accuracy, real-time altitude display
• Thermal imaging camera: Uncooled Vanadium Oxide (VOx), DFOV 45.76°, 640x512 resolution, temperature range -20°C to 150°C and 0°C to 550°C
