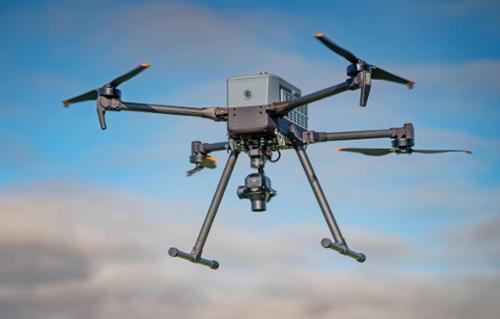

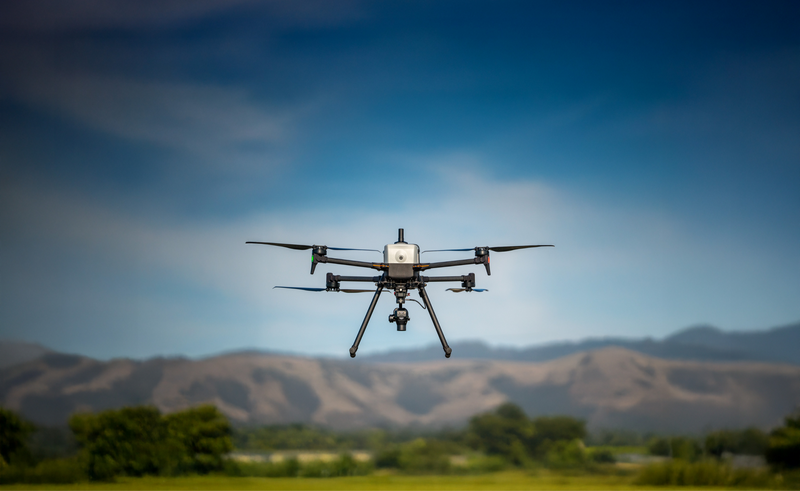

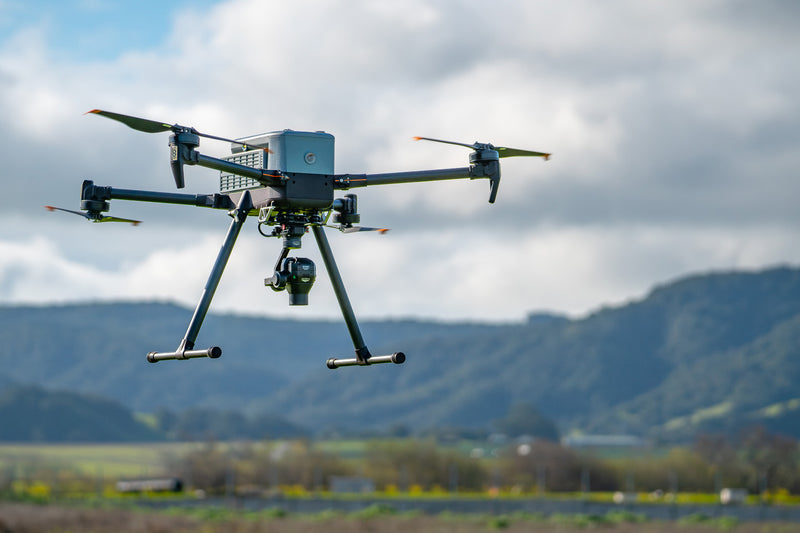

The Inspired Flight IF800 + Blue Herelink + Sentera 65R Bundle is the highest-resolution aerial mapping platform in its class — pairing a 65 MP Sony-sensor RGB camera with the IF800's 54-minute endurance and Blue Herelink 20 km GCS in a single ready-to-fly system built for surveyors, engineers, and precision ag professionals.
The Sentera 65R delivers sub-centimeter ground resolution at operational altitudes — generating orthomosaics, elevation models, and 3D reconstructions with the clarity that survey-grade workflows demand.
54-Min Endurance65 MP Sony SensorSub-cm GSDRTK PrecisionBlue Herelink GCSHot-Swap BatteriesPix4D CompatibleDroneDeploy ReadyHigh-Res Orthomosaic3D Point Cloud
The Highest-Resolution Mapping Bundle on the IF800
Standard mapping drones sacrifice either resolution or endurance. The IF800 + Sentera 65R bundle delivers both. The 65 MP Sony IMX455-class sensor captures more detail per flight than any other payload in this weight class — while the IF800 airframe keeps you airborne for 54 minutes. The result is fewer flights, more coverage, and deliverables that meet survey-grade accuracy requirements without the cost of a larger platform.
54-Minute Endurance Platform
The IF800 airframe delivers up to 54 minutes of unloaded flight time — one of the longest in its class. With the 65R payload mounted, mission times remain well above the 35-40 minute range that gives mapping crews the coverage they need per battery. Hot-swap batteries eliminate field downtime, and the rugged carbon fiber frame is engineered for wind, dust, and demanding survey conditions.
65 MP Sony Sensor — Sub-cm Ground Resolution

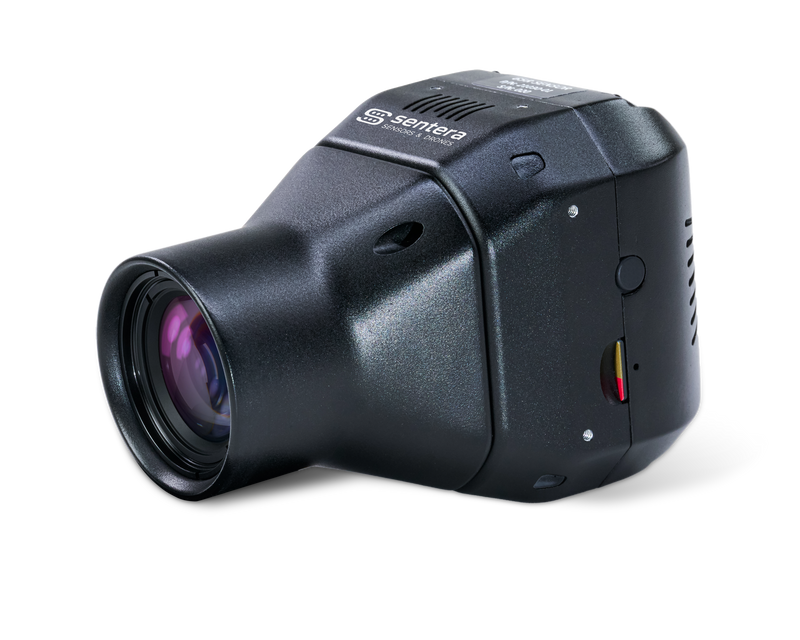

The Sentera 65R is built around a large-format 65 MP Sony sensor — delivering sub-centimeter ground sampling distance at operational mapping altitudes. Every pixel is radiometrically calibrated, and the sensor captures full-frame RAW and JPEG outputs compatible with all major photogrammetry pipelines. You get the detail your clients expect without flying at impractically low altitudes.
Blue Herelink 20 km GCS
The Blue Herelink ground control station provides encrypted 20 km video and telemetry link with an integrated Android controller and HD downlink screen. No separate tablet required. Supports Mission Planner, QGroundControl, Pix4Dfields, and DroneDeploy — including automated grid, waypoint, and crosshatch mapping patterns for complete photogrammetric coverage.
Sentera 65R — Sensor Capabilities
A single large-format 65 MP sensor delivering radiometrically calibrated RGB data for survey-grade orthomosaic, DSM, and 3D reconstruction workflows.
65 MP Full-Frame RGB
Large-format Sony-class 65 megapixel sensor captures full-frame high-resolution RGB imagery. Delivers the fine spatial detail required for survey-grade orthomosaics, construction progress documentation, and precision ag RGB scouting.
Sub-Centimeter GSD
At 60 meters AGL, the 65R achieves approximately 1 cm/px ground sampling distance — fine enough to resolve individual plant rows, cracks in pavement, and survey markers. Lower altitude flights push resolution further for inspection-grade detail.
Radiometric Calibration
Every image is radiometrically calibrated for consistent reflectance values across the entire mission. Calibration data is embedded in image metadata for seamless import into Pix4Dfields, Agisoft Metashape, and DroneDeploy.
RAW + JPEG Dual Output
Captures both full-resolution RAW and compressed JPEG simultaneously. RAW for maximum photogrammetric quality and post-processing flexibility. JPEG for fast preview and client delivery without additional processing steps.
Wide-Area Coverage
The 65R wide field of view combined with the IF800 endurance enables efficient coverage of large survey areas in a single battery. Less overlap required per flight means more ground covered per mission.
Precision Triggering
Hardware-synchronized triggering ensures precise image timestamps and GPS coordinates embedded in EXIF metadata. Critical for accurate GCP-free RTK photogrammetry and tight orthomosaic alignment.
Key Use Cases
🗺️ Topographic Survey & Land Mapping
The 65 MP sensor and RTK-capable platform delivers survey-grade orthomosaics and digital surface models with GSD below 2 cm/px. Combined with RTK positioning, outputs meet the accuracy requirements for ALTA surveys, boundary work, and engineering-grade topographic mapping without a crew of ground-based surveyors.
🏗️ Construction Progress Documentation
Weekly 65 MP orthomosaics give project managers pixel-level visibility into site progress, material stockpile volumes, and grading accuracy. The IF800 covers large construction sites in a single battery, and the Blue Herelink ensures reliable control throughout the site perimeter.
🌾 Precision Agriculture RGB Scouting
High-resolution RGB imagery identifies weed pressure, crop uniformity issues, hail or storm damage, and irrigation problems visible in color before they appear in multispectral indices. The 65R delivers the detail agronomists need to make field-by-field management decisions from a single efficient flight.
⚡ Infrastructure & Utility Inspection
Power line corridors, pipeline rights-of-way, and road networks are efficiently documented at sub-cm resolution. The IF800 endurance covers 10+ km of linear infrastructure per flight, while the 65R resolution is sufficient to identify surface defects, encroachments, and clearance violations.
📊 Stockpile Volume & Earthwork Measurement
Dense photogrammetric point clouds from the 65R drive accurate volumetric calculations for material stockpiles, cut-and-fill earthwork, and landfill capacity assessments. Outputs import directly into Civil 3D, Carlson, and Trimble Business Center for as-built verification and progress billing.
📋 Insurance, Legal & Environmental Documentation
Georeferenced 65 MP imagery creates the photographic record insurance adjusters, legal teams, and environmental consultants require. Sub-cm resolution captures damage details, encroachment evidence, and site conditions with the clarity that stands up in claims and legal proceedings.
Technical Specifications
| Airframe |
Inspired Flight IF800 Quadcopter |
| Max Flight Time |
Up to 54 minutes (no payload) |
| Payload Capacity |
3 kg |
| Max Takeoff Weight |
~8 kg (with payload and batteries) |
| Ground Control Station |
Blue Herelink (Android, HD video, encrypted) |
| GCS Range |
Up to 20 km |
| GNSS |
GPS, GLONASS, BeiDou, Galileo; RTK capable |
| Camera Sensor |
Sentera 65R (65 MP large-format RGB) |
| Sensor Resolution |
65 Megapixels |
| GSD |
~1.0 cm/px at 60m AGL |
| Focal Length |
Optimized for wide-area coverage |
| Image Format |
RAW + JPEG (simultaneous) |
| Coverage Rate |
Up to 400 acres per flight at 60m AGL |
| Software Compatibility |
Pix4D, Agisoft Metashape, DroneDeploy, QGIS, ArcGIS |
| Operating Temperature |
-10°C to 40°C |
| IP Rating |
Splash resistant |
| Battery |
Hot-swappable Li-ion packs (x2 included) |
| Case |
Rugged transport case included |
What's in the Box
✈️
IF800 Aircraft
Fully assembled quadcopter airframe
📱
Blue Herelink GCS
Android HD ground control station
📷
Sentera 65R

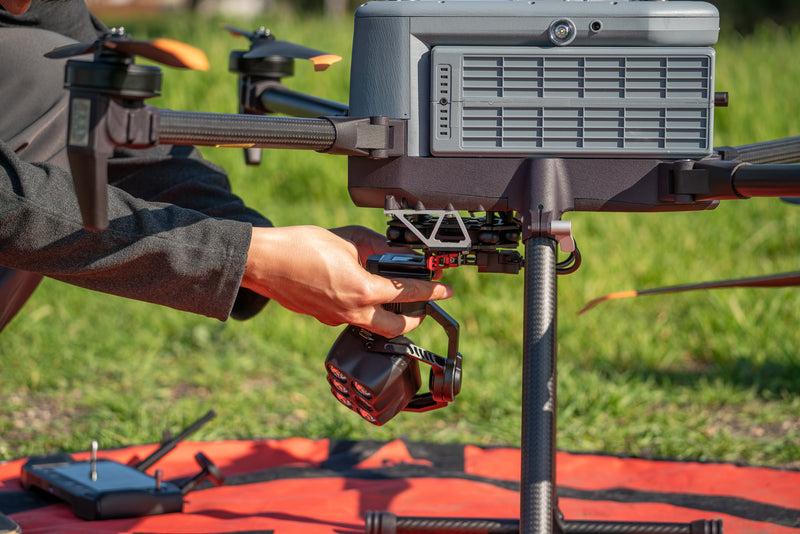

65 MP RGB mapping sensor, pre-mounted
🔋
2x Batteries
Hot-swappable Li-ion flight packs
⚡
Battery Charger
Multi-channel rapid charger
⚙️
4x Propellers
Spare folding prop set
📦
Rugged Case
Hard transport and storage case
📋
Documentation
Setup guide and calibration targets
Frequently Asked Questions
What is included in this bundle?
The bundle includes the IF800 aircraft, Blue Herelink ground control station, Sentera 65R 65 MP RGB mapping sensor, 2 batteries, charger, 4 spare propellers, and a rugged transport case. The sensor is pre-mounted and the system is ready for field deployment.
What ground resolution does the Sentera 65R achieve?
At 60 meters above ground level, the Sentera 65R delivers approximately 1 cm/px ground sampling distance. Flying at 40m AGL pushes resolution below 1 cm/px for inspection-grade detail. Exact GSD depends on flight altitude, speed, and sensor configuration settings.
Is this system compatible with Pix4D and DroneDeploy?
Yes. The IF800 + Sentera 65R is fully compatible with Pix4Dmapper, Pix4Dfields, DroneDeploy, Agisoft Metashape, and other major photogrammetry platforms. Automated grid missions can be planned and executed through QGroundControl or Mission Planner via the Blue Herelink.
Does the IF800 require a Part 107 license to fly?
Yes. The IF800 is a professional commercial drone platform. FAA Part 107 certification is required for commercial operations in the United States. Survey Tools Direct can provide guidance on training resources and certification pathways for your team.
