The DJI Matrice 4E is a professional RTK mapping drone engineered for survey-grade accuracy on every flight. With a built-in RTK module delivering 1 cm + 1 ppm horizontal accuracy, a 1-inch 20MP CMOS sensor, integrated laser rangefinder, and an industry-leading 49-minute flight time, the M4E is purpose-built for surveyors, GIS professionals, and mapping teams who need centimeter-level results straight from the aircraft.
Built-In RTK1 cm Accuracy1" CMOS 20MPLaser Rangefinder49-Min FlightIP54 Rated25 km RangeAI Obstacle SensingSurvey-Grade MappingCompact Enterprise
Survey-Grade RTK — Built In, Not Bolted On
Unlike drones that require an external RTK module, the Matrice 4E integrates RTK directly into the aircraft. That means centimeter-level positioning on every mission with no extra hardware to mount, configure, or carry. Horizontal accuracy reaches 1 cm + 1 ppm and vertical accuracy 1.5 cm + 1 ppm — the kind of precision your deliverables demand.
Feed the M4E from a network RTK correction source or pair it with a base station for fully independent operation in areas without network coverage.

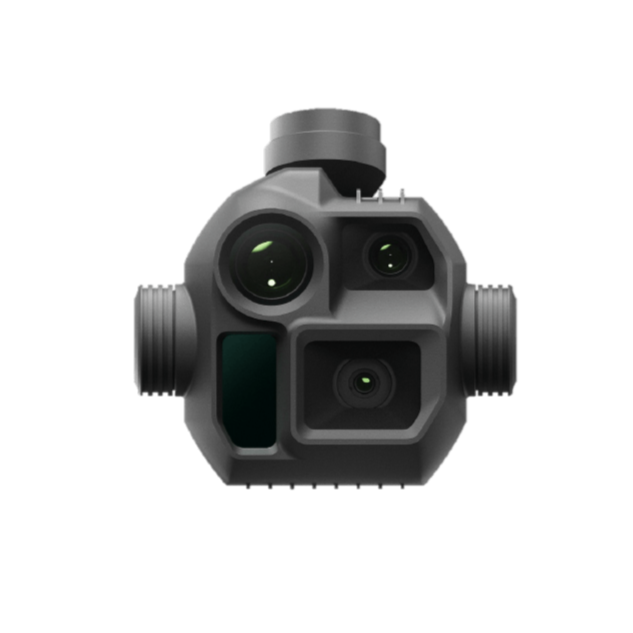

1-Inch CMOS Sensor — Mapping-Grade Imagery
The M4E's 1-inch 20MP CMOS sensor captures high-resolution imagery with wide dynamic range and excellent low-light performance. At an 84° field of view and 24mm equivalent focal length, a single pass covers wide ground swaths — minimising flight time and maximising data density per mission.
Paired with the integrated laser rangefinder (1,800 m range), the M4E collects accurate ground elevation data alongside imagery — reducing the need for dense GCP networks.
Camera & RTK at a Glance
📷
1" CMOS Camera
✓ 20MP Effective Pixels
✓ 84° Field of View
✓ 24mm Equiv. Focal Length
✓ f/2.8–f/11 Aperture
✓ 4K/30fps Video
✓ JPEG + DNG (RAW)
📡
Built-In RTK Module
✓ Horizontal: 1 cm + 1 ppm
✓ Vertical: 1.5 cm + 1 ppm
✓ Network RTK & Base Station
✓ Real-Time Correction
✓ Survey-Grade GCP Reduction
✓ Compact 24g Module
🔭
Laser Rangefinder
✓ 1,800 m Range at 1 Hz
✓ Oblique Incidence: 600 m
✓ 1 m Blind Zone
✓ ±(0.2+0.0015D) Accuracy
✓ Works with Camera Data
✓ No Extra Hardware Needed
🛡️
Obstacle Sensing
✓ Omnidirectional Binocular Vision
✓ Forward, Backward, Lateral
✓ AI-Powered Detection
✓ Safe Low-Altitude Flight
✓ Automatic Braking
✓ Wide-angle Supplemental
Who Uses the Matrice 4E?
Built for geospatial professionals who need accuracy without compromise:
🗺️ Land Surveying
Achieve centimeter-level accuracy with built-in RTK — eliminating the bulk and cost of external positioning hardware while maintaining survey-grade output.
🏗️ Construction Monitoring
Track earthworks progress, calculate cut-and-fill volumes, and produce accurate site plans on a schedule that keeps pace with your project.
⚡ Utility Corridor Mapping
Survey power line routes, pipeline corridors, and easements efficiently with 49-minute endurance and a 25 km video link for extended coverage.
🌾 Agriculture & Land Management
Map large agricultural areas, generate NDVI datasets, and produce accurate land-use records with high-resolution imagery and RTK geotagging.
🏛️ GIS & Asset Management
Create precise digital twins, update GIS databases, and document infrastructure assets with geo-accurate photogrammetry data.
Full Technical Specifications
| Category |
Specification |
| Max Flight Time |
49 Min (standard props) / 46 Min (low-noise props) |
| Max Hover Time |
42 Min (standard props) |
| Max Speed |
21 m/s |
| Video Link Range |
25 km (FCC) / 12 km (CE/SRRC) |
| IP Rating |
IP54 |
| Aircraft Weight |
1,219 g (with battery & propellers) |
| Max Takeoff Weight |
1,420 g |
| Dimensions (folded) |
260.6 × 113.7 × 138.4 mm |
| Camera Sensor |
1-inch CMOS, 20MP |
| FOV / Focal Length |
84° / 24mm equiv, f/2.8–f/11 |
| RTK Horizontal Accuracy |
1 cm + 1 ppm |
| RTK Vertical Accuracy |
1.5 cm + 1 ppm |
| Laser Rangefinder |
1,800 m range at 1 Hz |
| Max Wind Resistance |
12 m/s |
| Operating Temperature |
-10°C to 40°C (14°F to 104°F) |
| GNSS |
GPS + Galileo + BeiDou + GLONASS |
| Obstacle Sensing |
Omnidirectional |

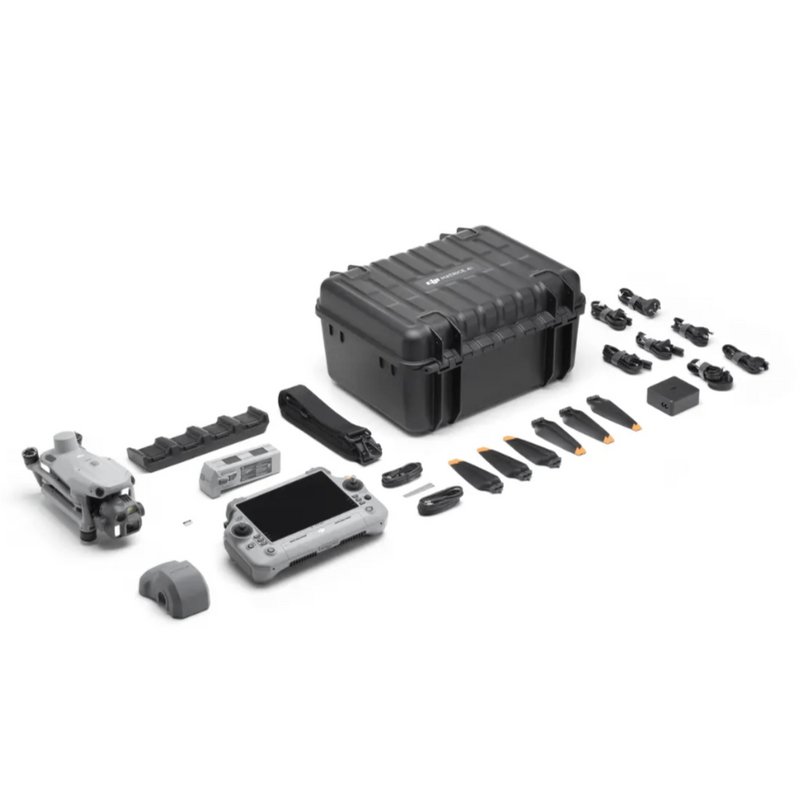

What's in the Box
📦 DJI Matrice 4E Aircraft
📦 RC Plus 2 Remote Controller
📦 Intelligent Flight Battery (×2)
📦 Battery Charging Hub
📦 Power Adapter & Cable
📦 Propellers (standard, ×4 pairs)
📦 Low-Noise Propellers (×4 pairs)
📦 RTK Module
📦 Gimbal Protector
📦 Storage Case
📦 Screwdriver
📦 Quick Start Guide
✅
Authorized DJI Dealer
Official US DJI reseller
🚚
Free US Shipping
On all orders, ships fast
🛠️
Expert Support
Pre-sale advice from drone pros
🔒
Secure Checkout
Safe & encrypted payment
Frequently Asked Questions
Does the Matrice 4E have built-in RTK?
Yes. The M4E includes an integrated RTK module as standard, delivering horizontal accuracy of 1 cm + 1 ppm and vertical accuracy of 1.5 cm + 1 ppm without any external hardware.
What is the difference between the Matrice 4E and Matrice 4T?
The Matrice 4E is optimised for geospatial tasks — surveying, mapping, and GIS — with its built-in RTK and 1" mapping camera. The Matrice 4T adds a thermal infrared camera and NIR auxiliary light, making it suited for inspection, emergency response, and night operations.
How long can the Matrice 4E fly?
The M4E achieves up to 49 minutes on standard propellers (46 minutes with low-noise propellers) in no-wind conditions. Hover time is up to 42 minutes — one of the longest in its class.
Does the M4E work with network RTK corrections?
Yes. The Matrice 4E supports both network RTK (NTRIP) corrections via the remote controller and traditional base station RTK setups for use in areas without network coverage.
What camera does the Matrice 4E use?
The M4E uses a 1-inch 20MP CMOS sensor with an 84° FOV and 24mm equivalent focal length, shooting JPEG and DNG (RAW) images at up to 5472×3648 pixels. It also records 4K/30fps video.
Is the Matrice 4E waterproof?
The M4E is IP54 rated, providing resistance to dust ingress and water splashes from any direction — suitable for field operations in light rain and dusty survey environments.
